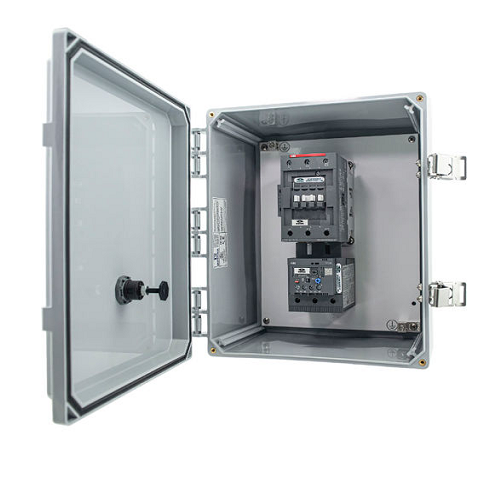

100-250V NEMA 4X Enclosed Motor Starter 80A 1PH Reset Button AF8016R4K-3V
| Height | 14 |
| Depth | 8 |
| Width | 14 |
| Full Load Amps @ 115V | 80 FLA |
| Voltage | 100-250 V |
| Phase | Single Phase |
| Enclosure Material | Polycarbonate |
| Operating Mode | Reset Button Only |
| Color | Gray |
| Overload Max Amps | 48-60 A |
| Manufacturers Part Number | AF8016R4K-3V |
| Brand | Springer Controls |
100-250V NEMA 4X Enclosed Motor Starter 80A 1PH Reset Button AF8016R4K-3V
Description:
Springer controls manufactures a complete line of IEC enclosed AC motor starters up to 60HP or 80A. Assembled motor starters consist of a contactor, overload relay and a NEMA 4X rated polycarbonate enclosure. To select the proper starter for your requirements. Refer to the motor or equipment nameplate to verify the Full Load Amperage (FLA) at the input voltage you will supply. Be sure to confirm whether it is 1phase or 3phase power to the motor. Choose a starter rated for current (Amps) higher than the FLA of your motor. Once you have done this it should narrow down the starters to only options suitable for your motor and power requirements.
1 Phase
Separate Coil Voltage + Remote Start Terminals
Reset Button Only
100-250V AC/DC Coil
48-60A O/L
NEMA 4X Poly
