1000′ 23 AWG 4 Pairs Black CAT6 CMXF Direct Burial Gel-Flooded Core LLDPE Jacket Cable
DESCRIPTION :
Category-6 CMXF, 8-Conductor, Direct Burial, Gel Filled, 23AWG Solid-Bare Copper.
FEATURES :
⦿ High-Performance Data Cable
⦿ 550 MHz Bandwidth for Data Applications,
⦿ Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-6 Unshielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 23 AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ ETL Listed, RoHS Compliant

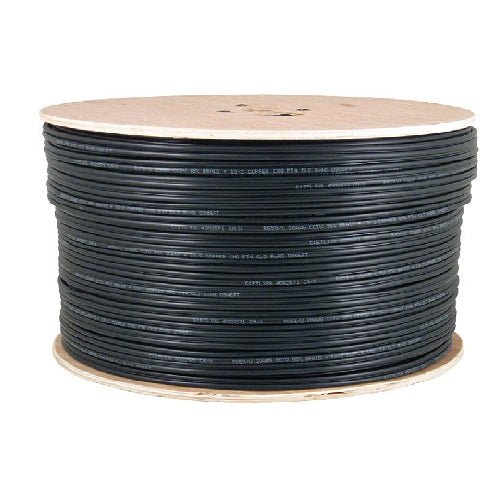

⦿ 1000ft Wooden Spool
Technical Data
⦿ Rated Temperature –40~70ºC
⦿ Rated Voltage 60V
⦿ Flammabilty Test IEC-332-1
Conductor Solid Bare Copper
⦿ Size 23 AWG
Insulation PE
⦿ Insulation Diameter (±0.01mm) 1.01
⦿ Twisted Pair Diameter (±0.02mm) 2.02
Seperator PVC
⦿ Assembly Diameter 5.00
Jacket LLDPE
⦿ LLDPE(UV) Outer Diameter (±0.30mm) 6.20
⦿ Rip Cord Yes
⦿ Color Black
Color of Pairs
⦿ Pair 1: Blue, White-Blue
⦿ Pair 2: Orange, White-Orange
⦿ Pair 3: Green, White-Green
⦿ Pair 4: Brown, White-Brown
Mechanical Characteristics
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Jacket Marking:
⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 23AWG OUTDOOR DIRECT BURIAL (FLOODED) UV LLDPE CAT6 600MHz ANSI/TIA-568.2-D RoHS V1379P12459 XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
