1000′ 23 AWG 4 Pairs Black CAT6 CMXT Direct Burial Unshielded Dual Jacket Cable
[pdf] [/pdf]
1000′ 23 AWG 4 Pairs Black CAT6 CMXT Direct Burial Unshielded Dual Jacket Cable
DESCRIPTION :
Category-6 CMXT, Direct Burial, Unshielded, 23AWG, 8-Conductor, Solid-Bare Copper, 1000ft Wooden Spool, Black.
FEATURES :
⦿ Category-6 Unshielded Twisted Pair
⦿ High Bandwidth for Data Applications
⦿ 23AWG Solid Copper Conductors
⦿ Easily Identified Color-Striped Pairs
⦿ Exceeds ANSI/TIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA-C22.2 No. 214
⦿ ETL Listed, RoHS Compliant

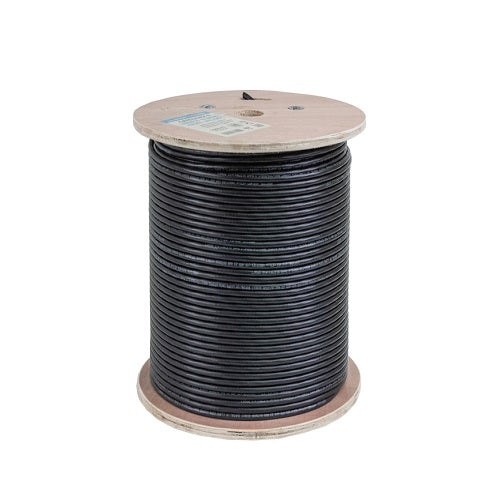

⦿ 1,000ft Wooden Spool

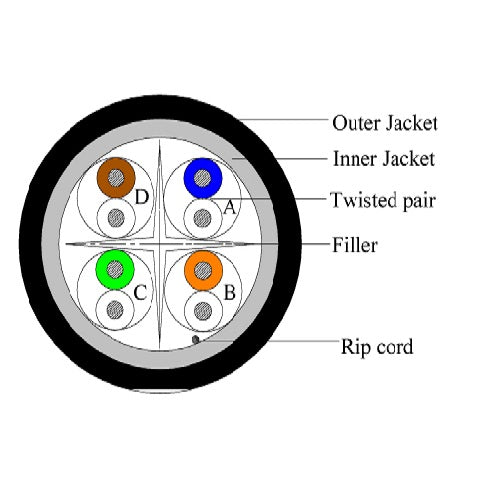

Technical Data
⦿ Rated Temperature 70 ºC
⦿ Rated Voltage 30V
Conductor Solid Bare Copper
⦿ Size 23 AWG
⦿ Diameter (mm) 0.57
Insulation PE
⦿ Insulation Diameter (±0.01mm) 1.01
⦿ Average Thickness (mm) 0.220
⦿ Twisted Pair Diameter (±0.02mm) 2.02
Separator LDPE
⦿ Assembly Diameter 5.00mm
Inner Jacket PVC
⦿ Outer Diameter (±0.20mm) 5.80
⦿ Average Thickness (mm) 0.40
⦿ Min Thickness (mm) 0.35
⦿ Rip Cord Nylon
Outer Jacket LLDPE
⦿ Outer Diameter (±0.10mm) 7.00
⦿ Average Thickness (mm) 0.60
⦿ Min Thickness (mm) 0.54
⦿ Rip Cord Nylon
Color of Pairs
⦿ Pair 1: Blue, White-Blue
⦿ Pair 2: Orange, White-Orange
⦿ Pair 3: Green, White-Green
⦿ Pair 4: Brown, White-Brown
Mechanical Characteristics
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥10.8
⦿ Aging Elongation (%) ≥300
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-20±2º Cx4hrs) No Crack
⦿ Bend radius ≥100mm
Marking on Jacket
⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 23AWG OUTDOOR
DIRECT BURIAL UV LLDPE CAT6 600MHz TIA/EIA – 568C.2 RoHS XXXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
