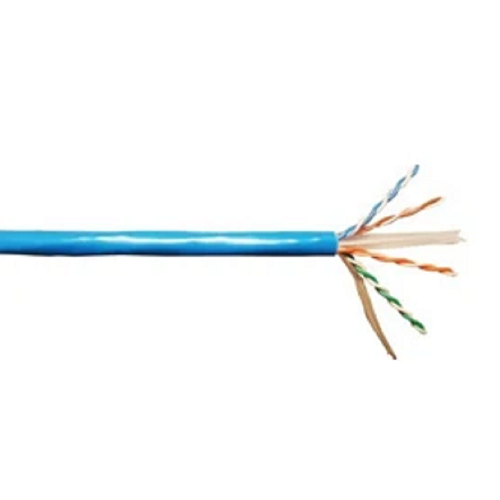

1000′ 23 AWG 4P Category 6 Solid Bare Copper CMP Plenum Unshielded Twisted Pair Cable 6CMP234BX
Applications:
23 AWG 4p Category 6 Solid Bare Copper CMP Plenum Unshielded Twisted Pair Cable is designed for IEEE 802.3 1000Base-T, 100Base-Tx 10Base-T, PoE+, ANSI/TIA 854: 1000Base-TX, CDDI, Token Ring, ATM, Digital Video, Broadband, and Baseband Analog Video.
Allowable Ampacity for 23 AWG 4p Category 6 Solid Bare Copper CMP Plenum Unshielded Twisted Pair Cable 6OUT234RX : 100 Amps
Also Known As:
23 AWG 4p CAT 6 Solid Bare Copper Cable, 23 AWG 4p Solid Bare Copper Cable, 23 AWG 4p Bare Copper Cable, Solid Bare Copper 6CMP234BX, CMR Riser Cable, CAT 6 Twisted Pair Cable.
Features and Benefits:
23 AWG 4p Category 6 Solid Bare Copper CMP Plenum Unshielded Twisted Pair Cable is used for
• Cross separator design engineered for consistent electrical performance.
• Improved cable temperature rating (750C Plenum) for greater protection against increased operating temperatures.
• Sequential footage markings.
• Verified by a third party for guaranteed performance.
Standard Compliances:
• ANSI/TIA 568-C.2
• ANSI/TIA 862 (Building Automation)
• ISO/IEC 11801 Ed. 2.0 (Class EI)
• ICEA 8-102-700 (Category 6 or 5E)
• REACH Compliant
• CPR Compliant (Fully Comply to 305/2011 & EN 50575:2014-09)
• RoHS Compliant Directive 2002/95/EG
Specification:
• Size AWG: 23
• Number of Pair: 4
• Conductor Diameter: 0.550 mm
• Average Thickness: 0.20 mm
• Insulation Dia. : 0.95 mm
• Minimum point Thickness: 0.15 mm
• Outer Diameter: 5.6 mm
• Length: 1000ft
• Weight: 0.0336 lbs
• Voltage Rating (Max): 300V
• Part No: 6CMP234BX
