1000′ 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Shielded LSZH jacket Cable
[pdf] [/pdf]
1000′ 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Shielded LSZH jacket Cable
DESCRIPTION :
Category-5E Direct Burial, F/UTP w/Drain Wire, 8-Conductor, Waterproof Outdoor Jacket, 24 AWG Solid Bare Copper
FEATURES :
⦿ High-Performance Data Cable
⦿ 350MHz Bandwith for Data Applications,
Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-5E Shielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 24 AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ Direct Burial Gel Filled (Flooded Core)
⦿ ETL Listed, RoHS Compliant

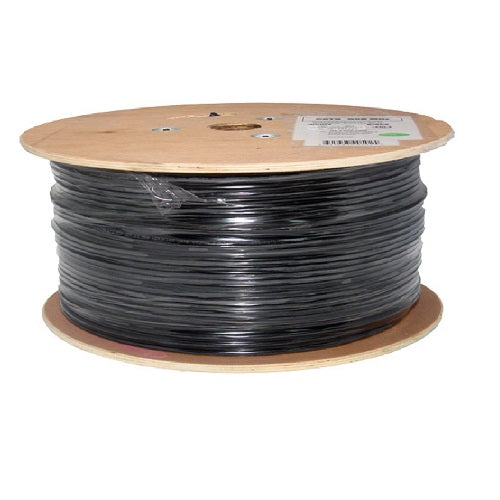

⦿ 1000 ft Wooden Spool
Technical Data :
⦿ Rated Temperature 75 ºC
⦿ Rated Voltage 60V
⦿ Product Standard Certification CMX
⦿ Application Horizontal Wiring in LAN
⦿ Reference Standard TIA/EIA 568, ISO/IEC 11801
Conductor Solid Bare Copper :
⦿ Size 24 AWG
Insulation PE :
⦿ Average Thickness (mm) 0.008 in (0.200 mm)
⦿ Min. Point Thickness (mm) 0.007 in (0.185 mm)
⦿ Insulation Diameter (±0.005mm) 0.036 in (0.91 ±0.005 mm)
⦿ Twisted Pair Diameter (±0.01) 0.072 in (1.82 ±0.01 mm)
Assembly Diameter 0.15 in (3.80 mm) :
Inner Jacket (Gray) PVC
⦿ Average Thickness (mm) 0.016 in (0.40 mm)
⦿ Min. Point Thickness (mm) 0.014 in (0.36 mm)
⦿ Outer Diameter (±0.10mm) 0.19 in (4.80±0.10 mm)
⦿ AL Foil Yes
⦿ Drain Wire (Tinned Copper) 7/0.16
Outer Jacket (Black) LSZH (UV)
⦿ Average Thickness 0.023 in (0.60 mm)
⦿ Min. Point Thickness 0.021 in (0.54 mm)
⦿ Outer Diameter 0.24 in (6.20±0.10 mm)
⦿ Rip Cord Yes

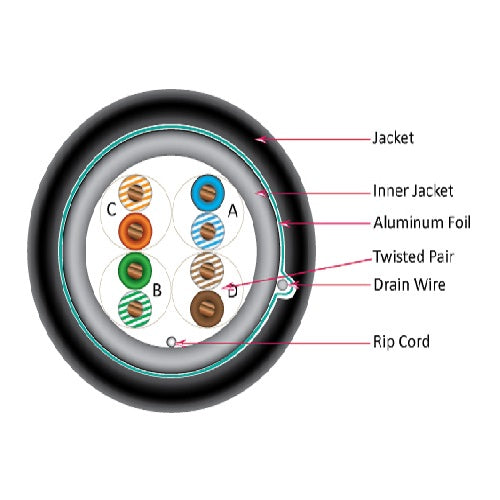

Color of Pairs :
⦿ Pair 1:Blue,White-Blue
⦿ Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green
⦿ Pair 4:Brown,White-Brown
Mechanical Characteristics :
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED CMX F/UTP 4PR 24AWG OUTDOOR DIRECT BURIAL (DRY) UV LSZH CAT5E 350MHz TIA/EIA – 568C.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET
