1000′ 24 AWG 4 Pairs Black CAT5E Direct Burial Gel Flooded Core LLDPE Jacket Cable
DESCRIPTION :
Category-5E CMXF Direct Burial, Flooded Core, 8-Conductor, 24AWG Solid-Bare Copper.
FEATURES :
⦿ High-Performance Data Cable
⦿ 350MHz Bandwidth for Data Applications,
⦿ Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-5E Unshielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 24AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ Direct Burial Gel Filled (Flooded Core)
⦿ ETL Listed, 1000ft Pull Box, or Spool
Technical Data :
⦿ Rated Temperature -40~70 ºC
⦿ Rated Voltage 60V
⦿ Product Standard Certification CMX
⦿ Application of Horizontal Wiring in LAN
⦿ Reference Standard TIA/EIA 568 & ISO/IEC 11801

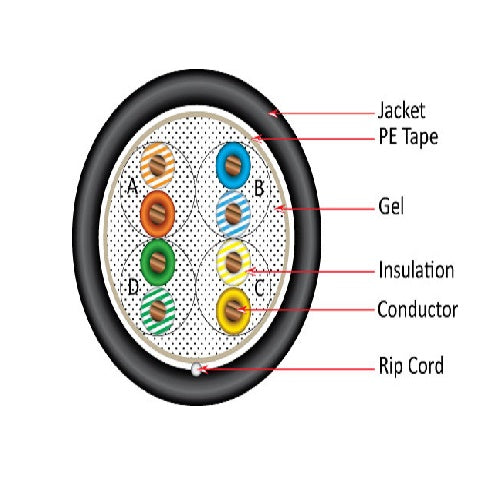

Conductor Solid Bare Copper :
⦿ Size 24 AWG
Insulation PE :
⦿ Average Thickness 0.008” (0.208mm)
⦿ Min. Point Thickness 0.007” (0.186mm)
⦿ Insulation Diameter 0.035” (0.91 ±0.005mm)
⦿ Twisted Pair Diameter 0.075” (1.92±0.01mm)
Filler Gel
Assembly Dia. 0.157” (4.00 ±0.2mm)
Jacket LLDPE (UV)
⦿ Average Thickness 0.023” (0.60mm)
⦿ Min. Point Thickness 0.02” (0.54mm)
⦿ Outer Diameter 0.21” (5.40±0.10mm)
⦿ Rip Cord Yes
Color of Pairs :
⦿ Pair 1:Blue,White-Blue
⦿ Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green
⦿ Pair 4:Brown,White-Brown
Mechanical Characteristics
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) >=13.8
⦿ Aging Elongation (%) >=100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) >=85% of unaged
⦿ Aging Elongation (%) >=50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 24AWG OUTDOOR DIRECT
BURIAL (FLOODED) UV LLDPE CAT5E 350MHz TIA/EIA – 568B.2 RoHS XXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
