1000′ 24 AWG 4 Pairs Black CAT5E Direct Burial Shielded Gel Flooded Core LLDPE Jacket Cable
DESCRIPTION :
CAT5E F/UTP, CMX Direct Burial, Flooded Core, 8-Conductor, Outdoor Jacket, 24 AWG
Solid-Bare Copper.
FEATURES :
⦿ High-Performance Data Cable
⦿ 350MHz Bandwith for Data Applications,
Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-5E Shielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 24 AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ Direct Burial Gel Filled (Flooded Core)
⦿ ETL Listed, RoHS Compliant

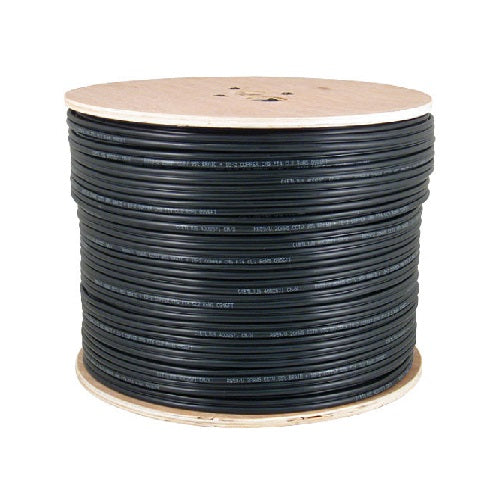

⦿ 1000 ft Wooden Spool
Technical Data :
⦿ Rated Temperature -40~70 ºC
⦿ Rated Voltage 60V
⦿ Product Standard Certification CMX

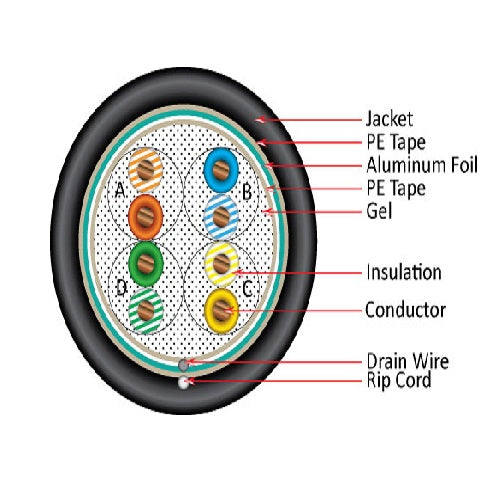

Conductor Solid Bare Copper :
⦿ Size 24 AWG
Insulation PE :
⦿ Average Thickness (mm) 0.228
⦿ Min. Point Thickness (mm) 0.220
⦿ Insulation Diameter (±0.005mm) 0.97
⦿ Twisted Pair Diameter (±0.01) 1.94
Filler Gel
⦿ PE Film Yes
⦿ Drain Wire (Solid Tinned Copper) (mm) 0.40
⦿ Al-foil Yes
⦿ PE Film Yes
Assembly Diameter 4.80 :
(Jacket (Black) LLDPE (UV))
⦿ Average Thickness (mm) 0.60
⦿ Min. Point Thickness (mm) 0.54
⦿ Outer Diameter (±0.10mm) 6.15
⦿ Rip Cord Yes
Color of Pairs :
⦿ Pair 1:Blue,White-Blue
⦿ Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green
⦿ Pair 4:Brown,White-Brown
Mechanical Characteristics :
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24AWG OUTDOOR UV
CAT5E 350MHz TIA/EIA – 568C.2 RoHS XXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
