1000′ 24 AWG 4 Pairs Black CAT5E Solid Bare Copper Shielded LLDPE Jacket Outdoor Messenger Cable
[pdf] [/pdf]
1000′ 24 AWG 4 Pairs Black CAT5E Solid Bare Copper Shielded LLDPE Jacket Outdoor Messenger Cable
DESCRIPTION :
Category-5E, STP Outdoor-Rated Cable with Messenger UV Rated Jacket, Solid-Bare Copper.
FEATURES :
⦿ Ideal for Outdoor Aerial Applications
⦿ Galvanized Steel Messenger for Support
⦿ Outdoor- and UV-Resistant Jacket Material Easily Identified Color-Striped Pairs
⦿ 24 AWG Solid Copper Conductors
⦿ Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Transmission Performance Specifications
⦿ ETL-listed, RoHS Compliant

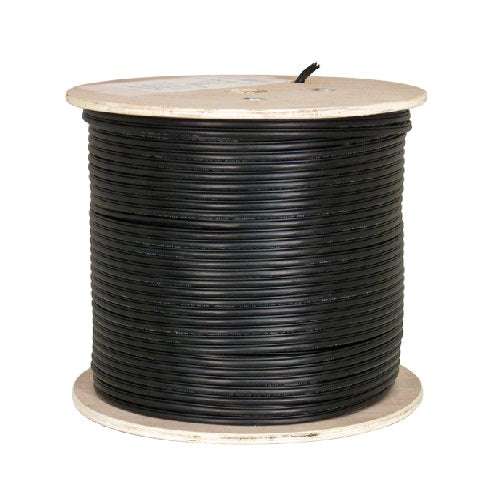

⦿ 1000 ft Wooden Spool

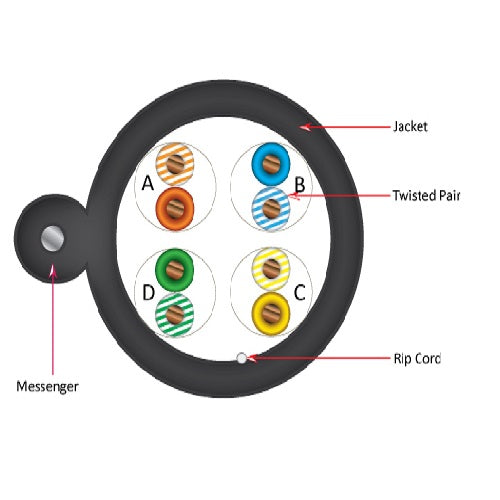

Technical Data :
⦿ Rated Temperature -40~70 ºC
⦿ Rated Voltage 60V
⦿ Flammability Test IEC-332-1
Conductor Solid Bare Copper :
⦿ Size 24 AWG
Insulation PE :
⦿ Average Thickness (mm) 0.228
⦿ Insulation Diameter 0.97
⦿ Twisted Pair Diameter 1.94
⦿ Seperator LDPE
⦿ PE-Tape Yes
⦿ AL-Foil Yes
⦿ Drain Wire (TC)(mm) 0.40
⦿ PE-Tape Yes
Assembly Diameter 4.80 :
Messenger Galvanized Steel
⦿ Diameter (mm) 1.30
Jacket (Black) LLDPE
⦿ Average Thickness (mm) 0.80×0.65
⦿ Outer Diameter 6.50×2.60
⦿ Rip Cord Yes (Nylon)
Color of Pairs :
⦿ Pair 1:Blue,White-Blue
⦿ Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green
⦿ Pair 4:Brown,White-Brown
Mechanical Characteristics :
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥10.6
⦿ Aging Elongation (%) ≥300
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED CMX STP 4PR 24AWG OUTDOOR UV CAT5E 350MHz TIA/EIA – 568C.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
