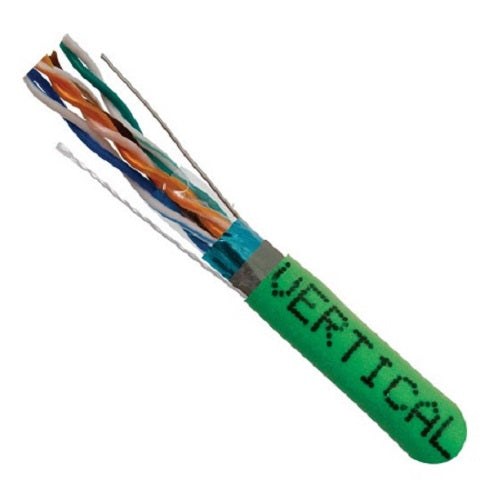

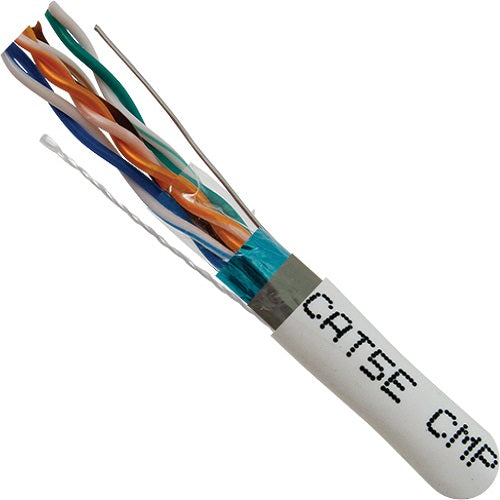

1000′ 24 AWG Solid Bare Copper F/UTP Plenum/Shielded CAT5E 350MHz Cable
[pdf] [/pdf]
1000′ 24 AWG Solid Bare Copper F/UTP Plenum/Shielded CAT5E 350MHz Cable
DESCRIPTION :
CAT5E Shielded(STP), Plenum Rated (CMP), 24 AWG Solid-Bare Copper, TAA Compliant
FEATURES :
⦿ High-Performance Data Communications Cable
⦿ Suitable for 350MHz High-Speed Data Applications, ANSI X3T9.5 TP-PMD (FDDI), ATM PMD 155Mbps, IEEE 802.3 Fast Ethernet 10 Base-T, 100 Base-T4, 100 Base-X, IEEE 802.5, 4/16 Mbps Token Ring, IEEE 802.12, 100 Base-VG, Gigabit Ethernet
⦿ Designed for Indoor Installations
⦿ Plenum Rated (CMP)
⦿ Category-5E Shielded Twisted Pair (F/UTP) Cable
⦿ Easily Identified Color-Striped Pairs
⦿ 24AWG Solid Bare Copper Conductors, 4-Pair
⦿ Excellent Attenuation and Crosstalk Characteristics
⦿ ANSI/TIA-568 C.2
⦿ UL Listed, TAA Compliant, RoHS Compliant
⦿ Supplied in a 1000ft Pull Box
Technical Data.
⦿ Rated Temperature 70 ºC
⦿ Product Standard Certification CMP
⦿ Flammability Test UL 444
Conductor Solid Bare Copper
⦿ Size 24 AWG
Insulation PE
⦿ Insulation Thickness (mm) 0.225
Color of Pairs Pair
⦿ Pair 1 Blue, White-Blue
⦿ Pair 2 Orange, White-Orange
⦿ Pair 3 Green, White-Green
⦿ Pair 4 Brown, White-Brown
⦿ Drain Wire Yes
⦿ Aluminum Foil Yes
⦿ PE-Tape Yes
⦿ Rip Cord Yes
Jacket FR-PVC
⦿ Outer Diameter (mm) 5.6
⦿ Mechanical Characteristics
⦿ Test Object Jacket
⦿ Test Material FR-PVC
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-20±2º Cx4hrs) No Crack
