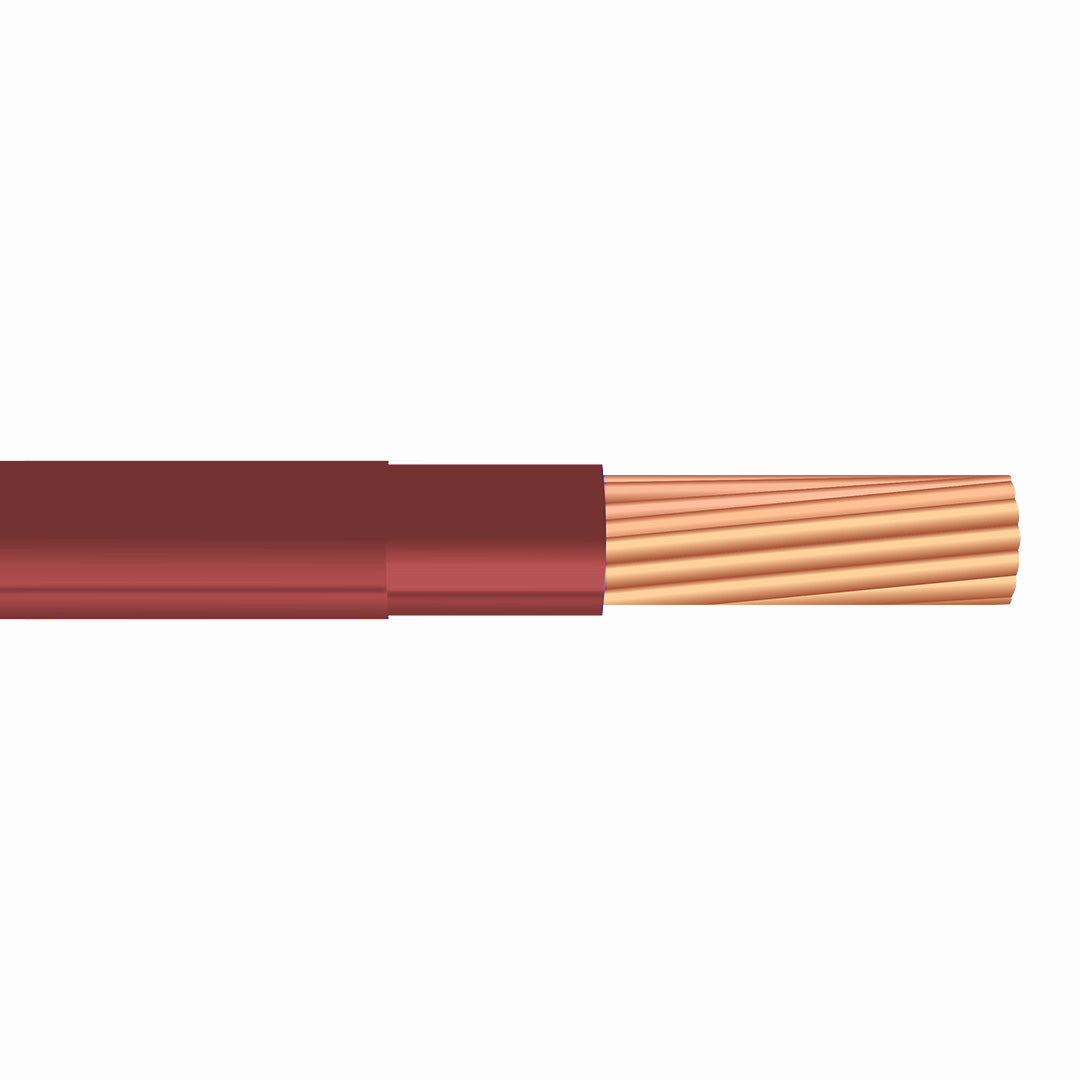

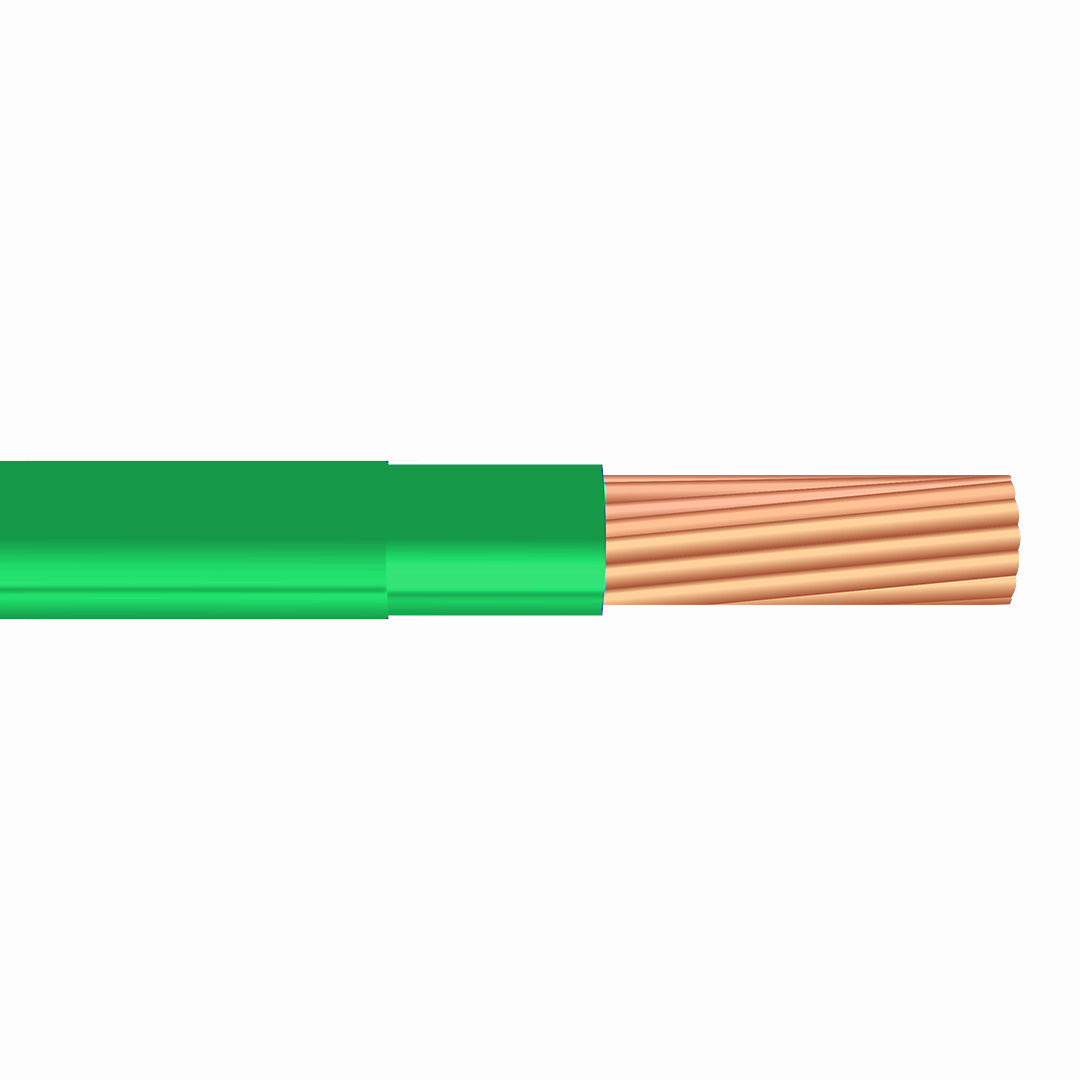

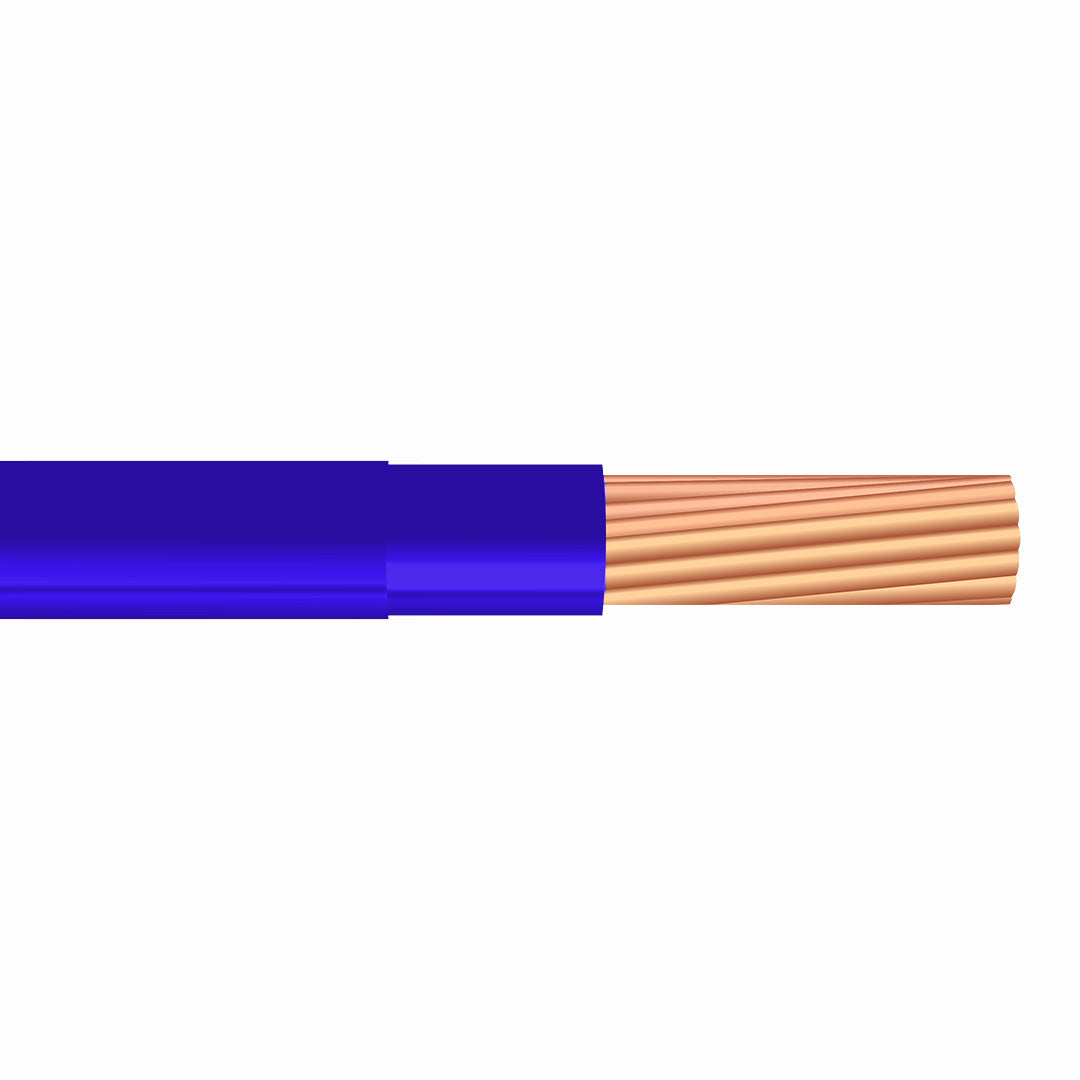

4/0 THHN THWN-2 Stranded Copper Building Wire
Applications:
SIMpull THHN/THWN-2 copper conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code and other applicable codes and standards. Voltage for all applications is 600 volts. SIMpull THHN/THWN-2 copper conductors are designed to be installed without the application of a pulling lubricant. These conductors have multiple ratings depending upon the product application. 600 Volts. Copper Conductor. PVC Insulation/Nylon Sheath THHN/THWN-2. Heat, Moisture, Gasoline and Oil Resistant II.
Allowable temperatures are as follows:
– THHN or T90 Nylon- Dry locations not to exceed 90°C
– THWN-2 – Wet or dry locations not to exceed 90° C or locations not to exceed 75°C when exposed to oil
– TWN75- Wet locations not to exceed 75°C
– MTW- Wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
– AWM- Dry locations not to exceed 105°C only when rated and used as appliance wiring material
Also Known As:
4/0 copper wire, 4/0 building cable, 4/0 hook up wire, 4/0 conduit wire, 4/0 nylon wire, 4/0 construction cable, 4/0 thermoplastic-insulated copper wire, 4/0 THHN-PVC tray cable, 4/0 CU THHN THWN-2, 4/0 CU Building Wire, 4/0 Black Stranded CU SIMpull THHN Wire, Southwire 20508801, Southwire Wire, 4/0 AWG THHN/THWN-2 Wire, 4/0 AWG THHN/THWN-2 Copper Building Wire, 4/0 Black Stranded Cu SIMpull THHN Wire, 4/0 AWG CU Wire, 4/0 AWG Strand Copper Wire, Nylon copper wire.
Construction:
Conductor:
THHN THWN-2 conductors are constructed of annealed soft copper that follow ASTM B787 and ASTM B8 standard.
Insulation:
The cable is insulated with a thermoset plastic jacket (PVC) that is flame-retardant, sunlight-resistant, lead-free, strong, and stable. Without being too bulky, it ensures that the cable can be used in harsh conditions. The jacket is color-coded in accordance with ICEA Method 4.
Sheath:
Nylon jacket utilizing SIMpull Technology
Features:
- Sunlight resistant #8 AWG and larger
- Gasoline and Oil Resistant II
- CT Rated 1/0 AWG and Larger
- VW-1 All Sizes
- FT-1 All Sizes
- AWM- Sizes 14 through 6 AWG
- MTW- Stranded Constructions Only
- RoHS Compliant
- LEED v4.1 Materials & Resources Credit MRc6; PBT (Lead Content Below 300 ppm Threshold)
Standards:
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 758 Standard for Appliance Wiring Material
- UL 1063 Machine Tool Wiring (MTW)
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
- CSA C22.2 No. 75 Thermoplastic Insulated Wires and Cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- Federal Specication A-A-59544
- NMX-J-010-ANCE Thermoplastic insulated wires and cables
- NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
Specifications:
- Size : 4/0 AWG
- Number of Strands: 19
- Diameter Over Conductor ( Inch ): 0.512
- Insulation Thickness (mils): 52
- Jacket Thickness (mils): 8
- Aprox. OD (inches): 0.627
- Copper Weight ( lbs/mft ): 653 lbs
- Net Weight ( lbs/mft ): 719 lbs
- Minimum Bend Radius: 2.5 inch
- Max Pull Tension: 1692 lb
- Allowable Ampacity At 75°C: 230 Amp
- Allowable Ampacity At 90°C: 260 Amp
- Southwire Part ( SimPull): 20508801
|
Compatible with Manufacturer |
|
|
AWC : |
White : THHN 4/0 19 9 |
|
Omni Cable : |
Black : M54/0ST-01 |
|
Southwire : |
White: 55612801 |
|
Houston Wire: |
HW00140101 |
