1000′ 4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
[pdf] [/pdf]
4 AWG THHN THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V
Allowable Ampacity for 4 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 75 Amps
Applications:
The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.
Also Known As:
4 thhn cable, 4 thwn cable, 4 awg thhn cable, 4 awg thwn cable, 4 thhn aluminum, 4 pvc insulated, 4 pvc insulated wire, 4 pvc insulated aluminium wire, 4 pvc sheathed cable, 4 pvc flexible cable.
Standards:
-
UL standard 83, 1685, CUL
-
CSA C22.2 No. 75
-
1/0 & larger are rated for CT use
-
Requirements of the National Electrical Code
-
NEMA WC-70 construction requirements
-
ASTM standards B 800, B 801, B836
-
Federal Specification AA-59544
-
Sunlight resistant
-
RoHS Compliant
Construction
Conductors:
THHN / THWN-2 / T90 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.
Insulation:
THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation
Jacket:

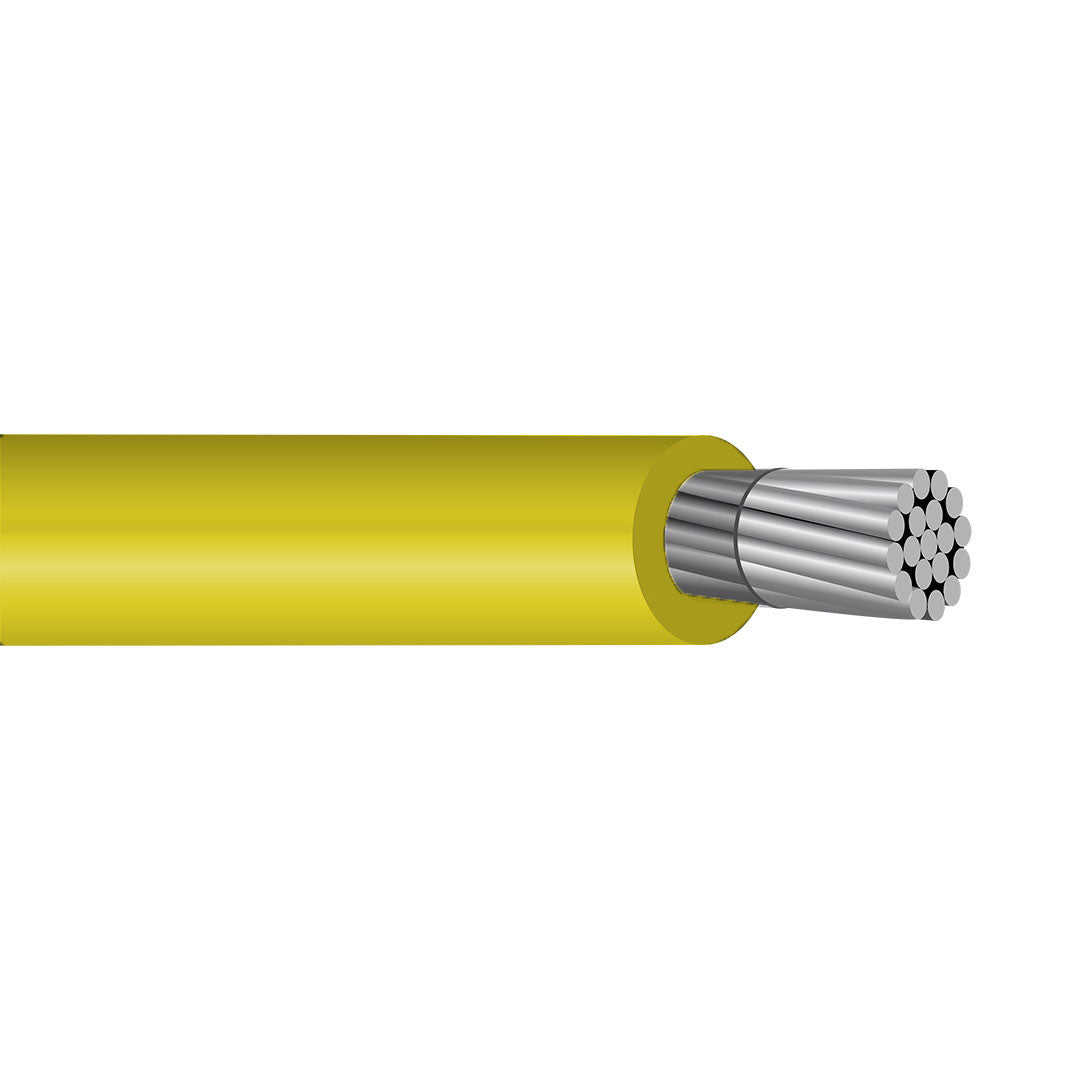

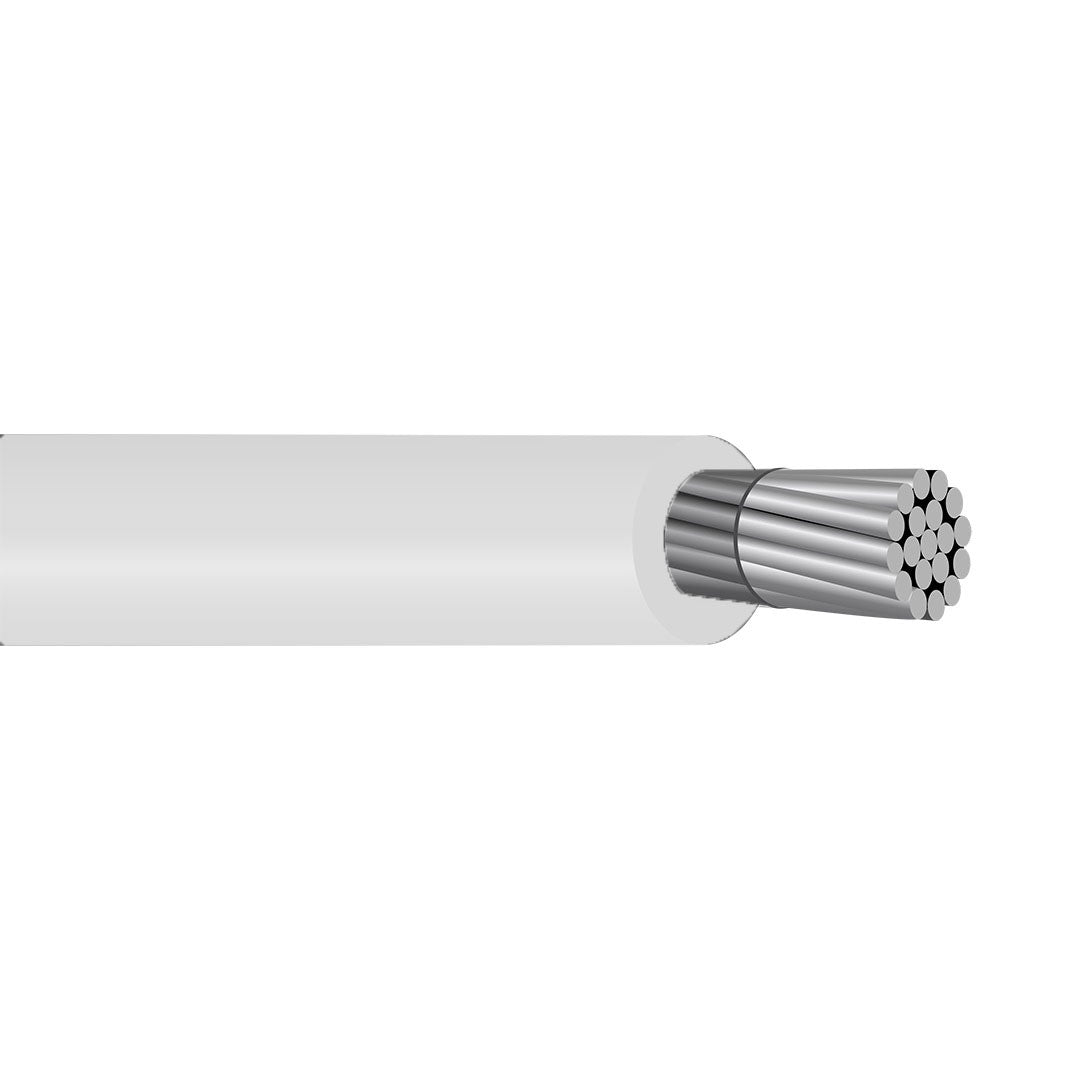

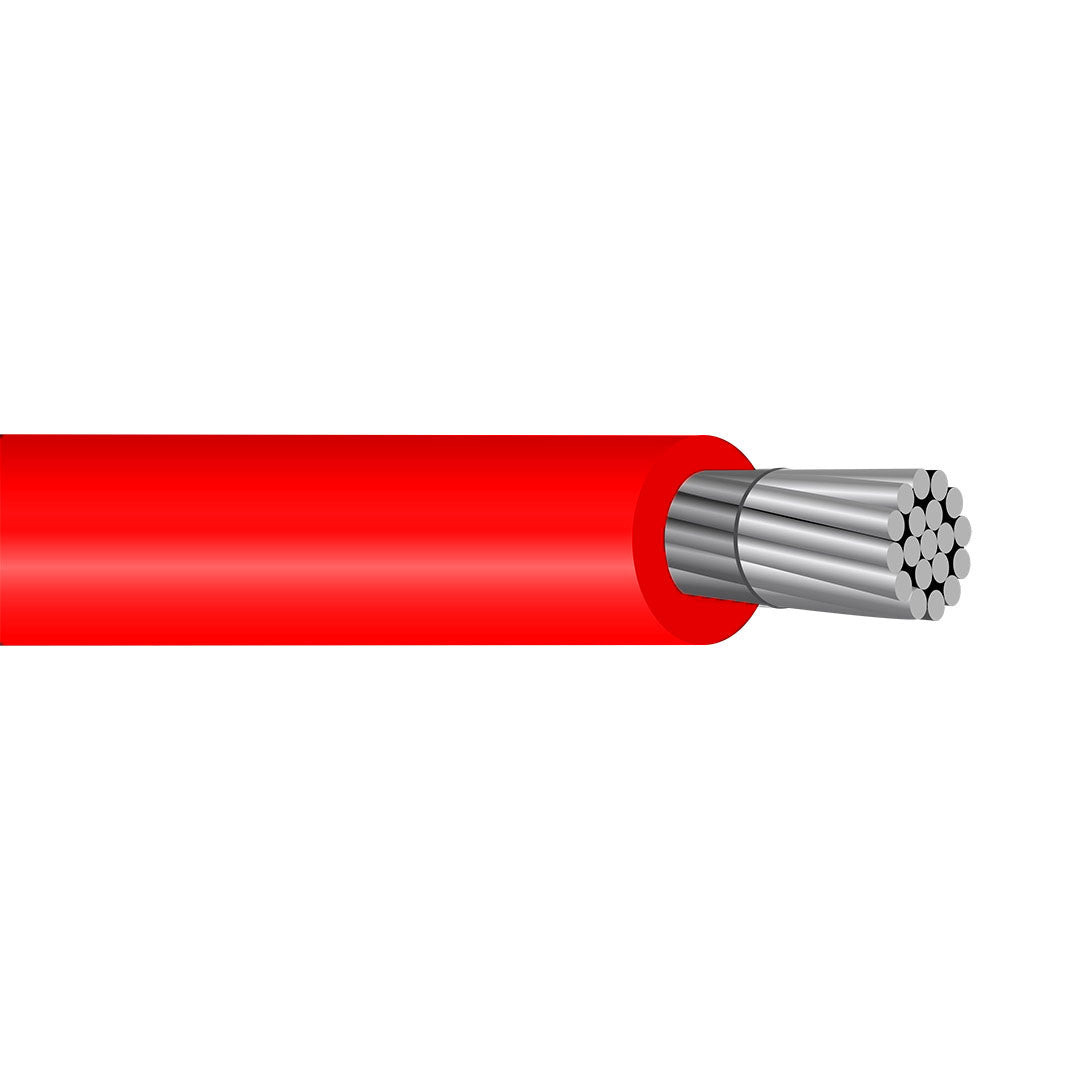

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.
Specifications:
-
Size AWG: 4
-
Stranding: 7
-
Conductor Diameter Inches: 0.213
-
Insulation Thickness Inches: 0.045
-
Jacket Thickness Inches: 0.006
-
O.D. Inches: 0.305
-
New Weight lb/1000FT: 68 lbs
-
Ampacity at 90°C: 75 Amps
<!–
Application:
• THHN / THWN-2 / T90 cables are primarily use for power distribution. THHN / THWN-2 / T90 cables
may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for cable
is 600V.
Conductors:
• THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B
stranding
Insulation:
• THHN / THWN-2 / T90 has abrasion, heat, sunlight and moisture resistant polyvinyl chloride PVC
Jacket:
• THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant and low coefficient
of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray,
purple and green.
Standards:
• UL standard 83, 1685, CUL
• CSA C22.2 No. 75
• 1/0 & larger are rated for CT use
• Requirements of the National Electrical Code
• NEMA WC-70 construction requirements
• ASTM standards B 800, B 801, B836
• Federal Specification AA-59544
• Sunlight resistant
• RoHS Compliant
–>
