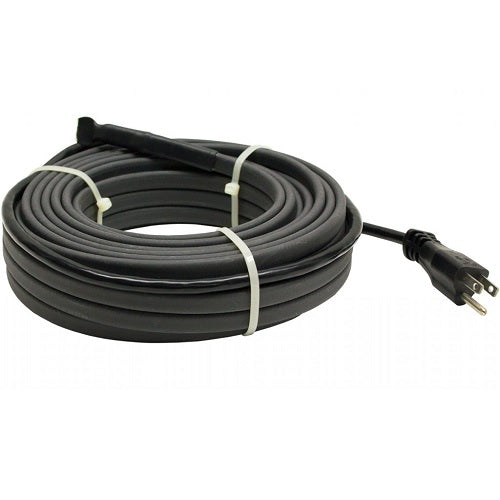

100ft 240V 600W Self Regulating De-Icing Pre Assembled Cable

[pdf] [/pdf]

About :

• SR Series Self-Regulating Pipe Trace Freeze Protection Heating Cable is designed for a variety of pipe freeze protection applications.
• Ideal for freeze protection and low temperature process maintenance such as water pipe heating.
• Stops Pipe and Valve Freeze Down to -40°F.
• Self-Regulating design offering 6 Watts/Linear Foot at 40°F and comes with a 240V Grounded Plug and End-Splice for quick installation.

Also Known As :

King Electric Heating Cable, King Heating Cable, Pipe Freeze Protection, Pre Assembled Heating Cable, Model SRP, Self-regulating Pipe Trace.

Common Applications :

• Residential Plumbing

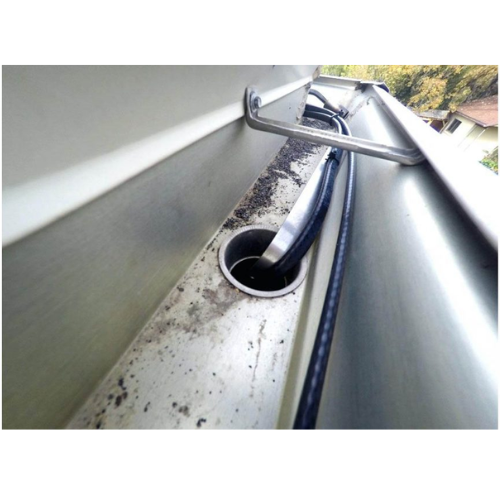

• Roof and Gutter De-icing
• Snow Melting
• Commercial Buildings

Standards :

• Input Volts : 240V
• Electrical resistance trace heating
• Fixed Electric Heating Equipment

Specifications :

• Pipe Rating  : 600W
• De-icing Rating : 800W
• Length : 100 feet
• Voltage : 240V

Features :

• Stops Pipe and Valve Freeze Down to -40°F
• Cable Will Not Burn Out or Overheat When Overlapped
• Pre-terminated With 30 Inch Cold Lead
• 240V Grounded Plug & End-Splice
• Ready to Install
• Suitable For Use On Metal & Plastic Pipes
• 6 Watts/Linear Foot at 40°F
• 16 Gauge Heating Cable Bus Wire
• Flouropolymer Insulation and Rugged PVC Jacket
• ETL Certified for USA & Canada

Construction :

• Conductive Core : Adjusts electrical resistance in response to temperature changes.
• Insulating Layer : Serves to direct the heat produced by the core towards the pipe or object being heated.
• Outer Jacket : Provides protection to the entire heating cable assembly.
