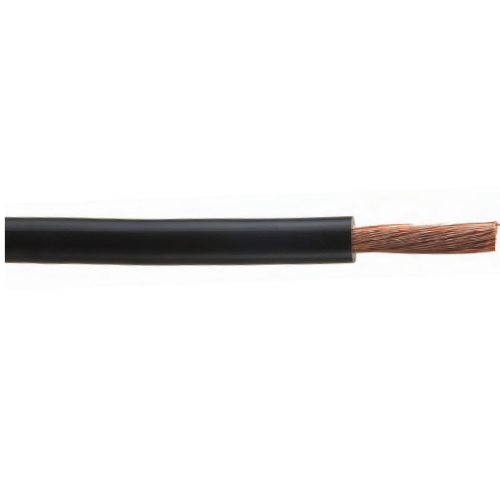

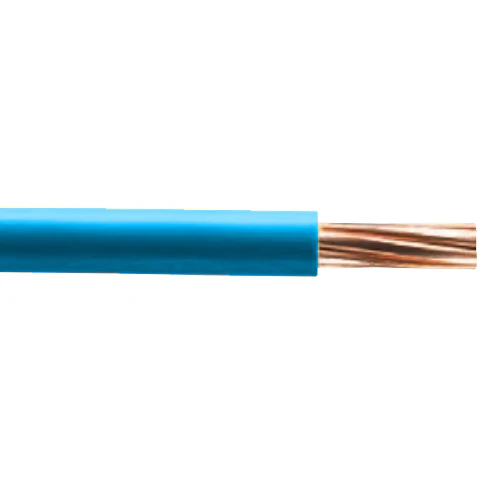

10mm 1C Bare Copper Unshielded Flexible PVC 600/1000V Tri-Rated Panel Wire
Allowable Ampacity for 10mm 1C Bare Copper Unshielded Flexible PVC 600/1000V Tri-Rated Panel Wire: 100 Amps
About:
• The Tri-Rated panel wire is a versatile, high-specification cable designed for use in control panels, switchgear, and internal equipment wiring. This wire is known for its excellent flexibility, durability, and high-temperature resistance, meeting stringent international standards.
Also Known As:
• Tri-Rated Cable
• BS6231 Cable
• UL1015 Cable
• CSA TEW Cable
• Control Panel Wire
• Switchgear Wire
Application:
• For the internal wiring appliances and also the wiring of switch, control, metering and instrument panels of power switchgear.
Standard:
• British Standard (BS): BS6231 Type CK for high-temperature applications up to 90°C.
• Underwriters Laboratories (UL): UL1015 for 105°C and 600V applications.
• Canadian Standards Association (CSA): CSA TEW for 105°C and 600V applications.
Construction:
• In accordance with BS6231 Type CK
• Conforms to UL subject 758 Appliance Wiring Material (AWM) for styles 1015, 1028, 1283 and 1284 as applicable. RoHS Compliant
• Canadian Standards Association (CSA) approved
• Conductor: Plain Flexible Class 5 conductors to BS EN 60228
• Insulation: PVC insulation
• Normal colours available see page 2:3
• Flammability: IEC60332-1-2
• Temperature Rating: BS6231 specifies a maximum continuous conductor operating temperature of 90°C, and for limited use up to 105°C. UL and CSA rated 105°C
• Voltage Rating: 600/1000 V (BS), 600 V (UL & CSA) 450/750 V (HAR)
• Minimum Bending Radius: 5 X Cable O.D
Features:
• Flexibility: Highly flexible due to the fine stranded copper conductor, making it easy to install in tight spaces.
• Heat Resistance: Designed to withstand high temperatures, ensuring durability and reliability in various environments.
• Flame Retardant: The PVC insulation is flame retardant, reducing the risk of fire hazards.
• Chemical Resistance: Offers good resistance to oils, acids, and other chemicals.
• Easy Identification: Available in multiple colors, aiding in easy circuit identification during installation and maintenance.
• Safety: Complies with multiple international standards ensuring high safety and performance levels.
Specifications:
• Conductor Size: 10mm Squared
• Product Type: Tri-rated Cables
• Conductor Material: Bare Copper
• ROHS Compliant: Yes
• Insulation Material: PVC-polyvinyl Chloride
• Shielded: Not Shielded
• Temperature Rating: 105 Degrees Centigrade (221 F)
• Weight kg/km: 115
• Part Number: TRI-0100-01, TRI-0100-02, TRI-0100-03, TRI-0100-06, TRI-0100-07, TRI-0100-09, TRI-0100-60
