12/2 UF-B Solid Copper Underground Feeder Cable 600V
Allowable Ampacity for 12/2 Solid Underground Feeder Cable UF-B Copper 600V for Direct Burial: 20 Amps
Allowable Ampacity for 12/2 Solid Underground Feeder Cable UF-B Copper 600V in Duct: 20 Amps
UF-B Description
The 12/2 UF-B Underground Feeder Cable is designed to supply power from residential, commercial, and industrial buildings to various outdoor installations. It is suitable for:
-
Direct burial without the need for conduit
-
Sunlight exposure in outdoor settings
-
Feeder or branch circuits with appropriate overcurrent protection
With a rating of 600 volts, this cable is ideal for outdoor, underground, and wet or damp environments.
General Applications
-
Powering underground feeders
-
Outdoor lighting systems
-
Outdoor outlets and receptacles
-
Direct burial installations
-
Wet or damp locations
-
Small pump systems
-
HVAC unit wiring
-
Indoor wiring in areas exposed to moisture
12/2 UF-B Specific Applications
-
Lighting for outdoor spaces
-
GFCI circuits for exterior outlets
-
Irrigation and sprinkler systems
-
Supplying power to small sheds or outbuildings
-
Connecting small pump systems

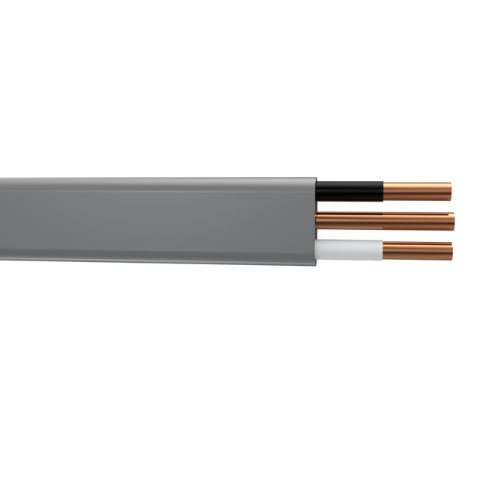

UF-B Construction
Conductor:
-
Solid or stranded Type THHN/THWN conductors laid parallel with an uninsulated grounding conductor
-
Made of solid annealed bare copper
Insulation:
-
Protected by a durable PVC jacket with a nylon covering
-
Resistant to:
-
Moisture
-
Grease
-
Corrosion
-
Sunlight
-
Chemicals
12/2 UF-B Specifications
-
Size (AWG): 12
-
Weight per 1,000 ft: 95 lbs
-
Outside Diameter: 463 x 183
-
Number of Conductors: 2
-
Number of Strands: 1
-
Jacket Material: PVC
-
Insulation and Jacket Thickness: 19 mils
-
Jacket Thickness: 30 mils
-
Ground Size: 12
Standards and Compliance
-
UL Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
-
ASTM B3 and B8
-
UL Standard 83
-
Federal Specification A-A-59544
-
Recognized for interior wiring in wet, dry, or corrosive locations under the National Electrical Code (NEC)
-
Compliant with NEC Article 339-3 (4) for Non-Metallic Sheathed Cable installation
-
Meets NEC Articles 300-4(b) and 339
-
RoHS / REACH Compliance
|
Compatible with Manufacturer |
|
| Service Wire & Co : | UFB12/2G |
| Southwire : | 130492 |
[/short]
Applications:
• Permitted for use underground including direct burial in earth as Feeder or Branch Circuit Cable where provided with overcurrent protection
• For use in interior wiring in wet, dry or corrosive locations under recognized wiring methods of the National Electrical Code (NEC)
• Acceptable to be installed as a Non-Metallic Sheathed Cable in accordance with NEC Article 339-3 (4)
• Acceptable for use in accordance with NEC Articles 300-4(b) and 339
Description:
Type UF-B Underground Feeder Cable’s construction provides solid or stranded Type THHN/THWN conductors laid parallel with an uninsulated grounding conductor. An outer jacket of tough PVC, provides protection against mechanical damage, moisture, chemicals and corrosion.
• Grease and chemical resistant conductors
• Moisture, chemical and sunlight resistant jacket
Standards:
UL Standard 493 – Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
Temperature: 75°C
Voltage: 600
