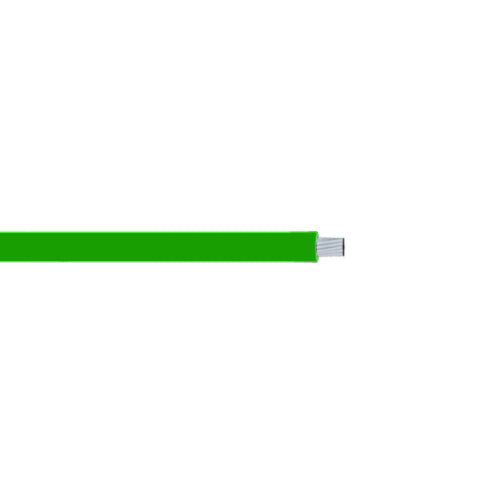

12 AWG 1C 19 Strand Silver Plated Copper Unshielded UL 1199 PTFE 200C 600V Hook-Up Lead Wire
12 AWG 1C 19 Strand Silver Plated Copper Unshielded UL 1199 PTFE 200C 600V Hook-Up Lead Wire
Allowable Ampacity for 12 AWG 1C 19 Strand Silver Plated Copper Unshielded UL 1199 PTFE 200C 600V Hook-Up Lead Wire: 100 Amps
Also Known as:
High Temperature Cable, High Voltage Cable, UL 1199 Cable, Hook-up Cable, Lead Cable
Description:
UL 1199 PTFE insulated hook-up wire is used for the internal wiring of electronic equipment and appliances. Rated for 200C and 600VAC.
Specifications:
Gauge Size: 12
Stranding: 19
No. of Conductors: 1
Armor Type: None
Conductor Metal: Silver Plated Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PTFE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1199
Temperature: 200C
Voltage: 600V
IEWC Part: 1199/12S19-0
Manufacturer: Harbour Industries
Manufacturer Part: J4183-0
