12 Port Wall Mount Patch Panel 568A/B Wired With 89D Bracket PP12A5E-R
[pdf] [/pdf]
| Type |
Patch Panel
|
| Category |
5e
|
| No of Ports |
12
|
| Color |
Black
|
| Wiring |
T568A/B
|
| Outlet Type |
8 Wire
|
| Part Number | PP12A5E-R |
|---|
DESCRIPTION:
Category 5e patch panels incorporate our best design and application performance specifications ever. The Category 5e product line provides unmatched performance in premise connectivity. Designed for the most demanding network applications, Category 5e patch panels offer customers the highest level of headroom to any Category 5e link or channel specification.
FEATURES:
• Comfortably exceeds TIA-568-C.2 Cat 5e requirements
• ISO/IEC60603-7 compliant
• Patented PC board technology
• Constructed of cold rolled steel for durability
• Rigid design provides solid frame for high-impact punch-down tools
• Universal TIA 568A/B wiring configuration
• IDC’s rated for 200 wire insertions
• Write-on label fields
• Cable strain-relief bar provided

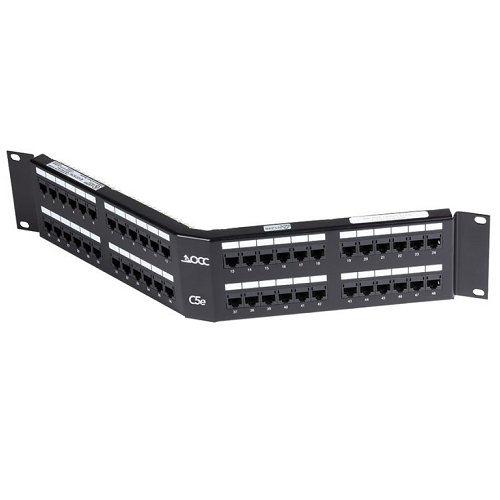

• Patch panels are available in both flat and angled configurations
• Supports all IEEE Power over Ethernet (PoE) standards
• Insulation resistance: 500MΩ minimum
• Dielectric withstand: 1000 VAC RMS or 1414 VDC
• DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient
