12-Ton C-Head Battery Crimper with 120V-AC Charger & Hard Case PAT750T3C03A2
[pdf] [/pdf]
About :
The 12-Ton PATRIOT® T3 Technology crimper series provides the user the ability to TRACK crimp locations with Onboard GPS, TRACE individual crimps with comments, photos, and output force validation, and TRANSMIT data via Bluetooth®. With its C-head design, 1.65” jaw opening and patented T-Track alignment guide for HYGROUND® as well as other asymmetrical connectors, crimps a vast range from #14 Sol – 750 kcmil. UL Listed Connections when used with the BURNDY® Engineered System.
Also Known As :
Battery Crimper, Crimper, Burndy Crimper, Hand Tools, Tools, Home Improvement Tools, Industrial Electrical Tools
Specification :
| Application | Crimping |
| Container Type | Hard Case |
| Battery Type | 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries) |
| Crimp Force Capacity | 12 ton |
| Die Type | U Die |
| Tool Type | Battery Actuated Crimper, T3 Technology |
| Product Type | Crimper |
| Operating Voltage | 18 VDC |

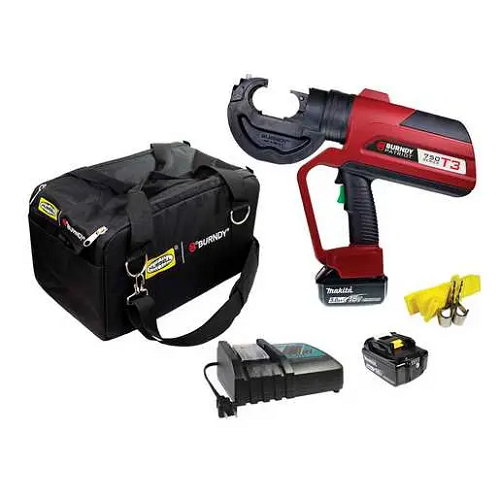

| Package Contents | Crimper, (2) Batteries, Charger, Lanyard, Hard Case |
| UPC No. | 621945558960 |
Features :
• TRACK crimp locations with onboard GPS – BURNDY Exclusive!
• TRACE individual crimps with comments and output force validation
• TRANSMIT via Bluetooth® technology and sync data to the cloud
• C-head with 1.65″ jaw opening with 355° head rotation
• Used with U dies
• Bright LED worklight and Red/Green LED to validate output force
• Improved ergonomic design with more balance and better grip to reduce user fatigue
• Patented T-Track alignment guide for HYGROUND® as well as other asymmetrical connectors
• Accepts 2.0Ah-6.0Ah Makita Lithium-ion Batteries
