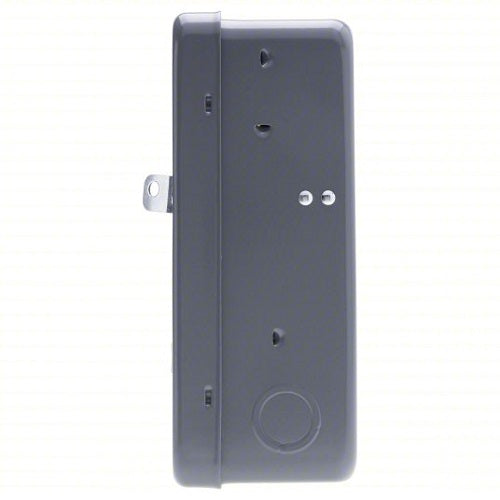

120, 208 to 277V AC 40Amp Electromechanical Timer 8009A
[pdf] [/pdf]
TORK Electromechanical Timer: 120, 208 to 277V AC, 40 A Amps, 24 hr, 15 min Min. Time Setting
About :
An Electromechanical Timer is a device used to control electrical circuits over a predetermined period. It operates by using a combination of mechanical and electrical components to manage time-based processes. These timers are commonly found in industrial, commercial, and household applications.
Also Known As :
Electromechanical Timer, Mechanical Timer, Cam Timer, Mechanical Relay Timer, Rotary Timer
Specification :
| Product Type | Electromechanical Timer |
| Voltage | 120, 208 to 277V AC |
| Amps | 40 A |
| Min. Time Setting | 15 min |
| Max. Time Setting | 24 hr |
| Max. On/Off Cycles | 48 |
| Width | 4-11/16 in |
| Depth | 2-15/16 in |
| Standards | California Title 24 Compliant; CSA 60730; UL |
Features :
• These switches provide automatic On/Off control when operation is required at the same time every day. They also feature manual override controls. Use to operate outdoor building lights, commercial ovens, and heaters for pools and spas.
• Some electromechanical timers come with a manual override feature, which allows the user to bypass the timer if needed.
• Uses gears, cams, or a motor-driven mechanism to control the timing cycle, ensuring accuracy and reliability.
• Many models can handle high current loads, allowing them to control large electrical devices like motors, pumps, or lighting systems.
