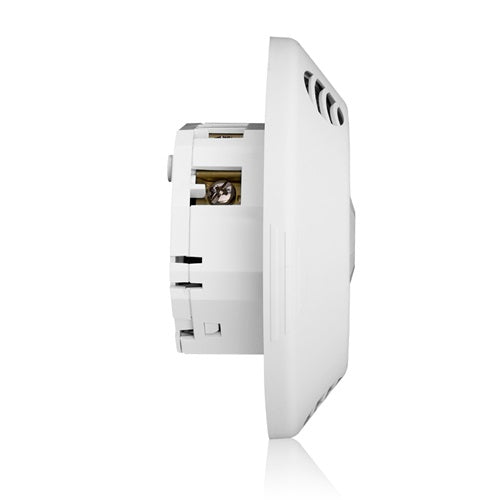

120-277V Occupancy Sensor With Integrated Photocell Ultrasonic White O2C05-UDW
[pdf] [/pdf]
About:
• Occupancy sensors are widely used to automatically control lighting systems by turning lights on when occupancy is detected and off when the space is unoccupied, contributing to energy savings.
• Occupancy sensors are employed in security systems to detect movement within restricted or sensitive areas, triggering alarms or surveillance systems.
• These sensors use sound waves to detect motion and are effective in spaces with obstructed lines of sight.
• Occupancy sensors can be ceiling-mounted, wall-mounted, or integrated into light fixtures, depending on the application and desired coverage area.
Also known as:
Motion Sensor, Motion Detector, Presence Detector, Human Presence Sensor, Activity Sensor, PIR Sensor, Lighting Control Sensor, Occupancy Sensor.
Specification:
• Product Type: Occupancy Sensor and Photocell
• Mounting Type: Ceiling Mount
• Relay Type: Dual Relay
• Voltage: 120/230/277V
• Sensor Technology: Ultrasonic (US)
• Frequency: 50/60Hz
• Color: White
• UPC Code: 078477642764
Features:
• Utilizes sensors which emit non-audible sound waves and sense movement.
• Any movement within the sensor’s field-of-view causes a shift in the original emitted frequency.
• The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
• Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
• Vacancy Sensing Time Outs: (Delayed OFF Timer, Exclusive Walk-through Feature, Time delay and saved settings are protected during power outages and will return to the last known state)
• Output short circuit protection
• Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
• Presentation Mode allows user to turn lights OFF and keep them OFF while the room is occupied
• Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
• Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
• Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
