120V 1500W Fan Driven Heater w/ Hi-Low SW & RG White
[pdf] [/pdf]
| Type | Kickspace Heater |
| Volts | 120 |
| AMPS | 2.1 – 12.5 |
| Watts | 250-500-750-1000-1250-1500 |
| Color | White |
| Weight | 11 lbs |
| UPC | 093319208885 |
| Part Number | KTW1215-HLS-RG-W |
King KTW1215-HLS-RG-W Horizontal/Vertical Kickspace 120V 1500W White with Recessed Grill
Description:

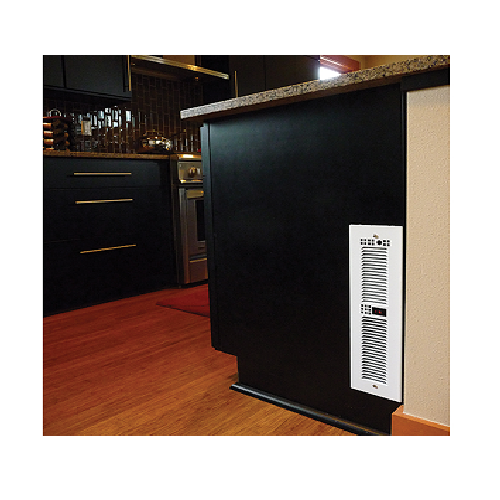

The only convertible cabinet heater that can be installed either vertically or horizontally on the market. This narrow profile heater is only 3-5/8” tall and specifically designed to fit into kitchen or bathroom cabinets, providing warm comfortable air for a cold bathrooms or kitchens saving valuable floor and wall space. For application other than kickspace, use the KTW-TG Grill.
Blower and Motor: A tangential cylindrical blower, delivering 70 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor with impedance protection and sealed bearings. Motors shall be the same voltage as the heater.
Elements: Element assemblies shall have a 3-wattage element construction of coiled nickel chromium, alloy corrosion resistant wire strung with a minimum of two rows of muscovite insulator. Element assemblies shall have factory provided connection to allow field modification of wattage at time of installation
Features:
• Installs Vertically or Horizontally
• Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
• Includes Hi/Lo selector switch
• NiChrome Open Coil Element For Quick Heat Transfer
• Squirrel Cage Blower
• Patented Smart Limit Protection
• Available in Black, Almond, White or Stainless Finishes
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Residential Electric Heaters, King Residential Heaters, Fan-Driven Heaters, MODEL KTW
