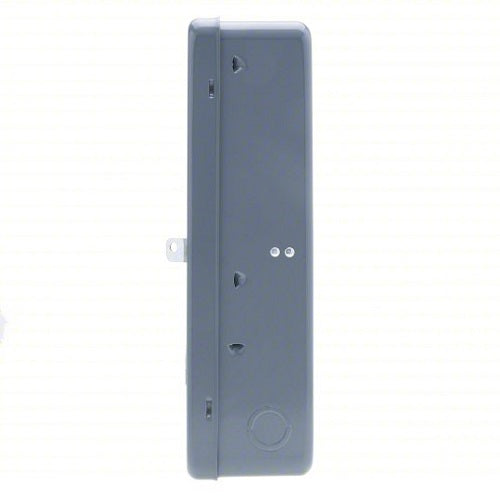

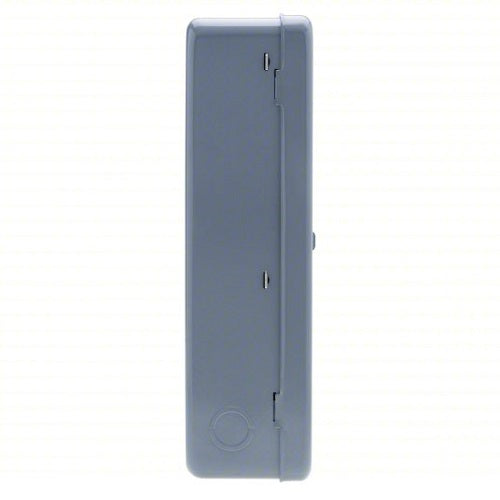

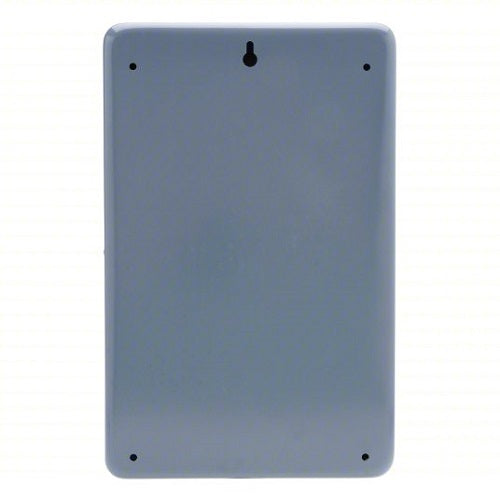

120V AC 40Amp Metal Electromechanical Timer W400B
[pdf] [/pdf]
TORK Electromechanical Timer: Metal Indoor, Screw, 120V AC, 40 A Amps, SPDT, 3 hr 30 min
About :
An Electromechanical Timer is a device used to control electrical circuits over a predetermined period. It operates by using a combination of mechanical and electrical components to manage time-based processes. These timers are commonly found in industrial, commercial, and household applications.
Also Known As :
Electromechanical Timer, Mechanical Timer, Cam Timer, Mechanical Relay Timer, Rotary Timer
Specification :
| Product Type | Electromechanical Timer |
| Type | 7-Day |
| Number of Poles | 4 |
| Contact Form | SPDT |
| Voltage | 120V AC |
| Contact HP @ 120V | 2 hp |
| Contact HP @ 240V | 5 hp |
| Amps | 40 A |
| Enclosure Type | Metal Indoor |
| NEMA Rating | 1 |
| Min. Time Setting | 1 hr |
| Max. Time Setting | 3 hr 30 min |
| Max. On/Off Cycles | 2 |
| Mount | Screw |
| Width | 6-5/8 in |
| Depth | 3-57/64 in |
| Height | 11-3/4 in |
Features :
• These switches provide automatic On/Off control when operation is required at the same time every day. They also feature manual override controls. Use to operate outdoor building lights, commercial ovens, and heaters for pools and spas.
• Some electromechanical timers come with a manual override feature, which allows the user to bypass the timer if needed.
• Uses gears, cams, or a motor-driven mechanism to control the timing cycle, ensuring accuracy and reliability.
• Many models can handle high current loads, allowing them to control large electrical devices like motors, pumps, or lighting systems.
