120V Lead Acid Line–Interactive UPS VL3000A-1
[pdf] [/pdf]
| Capacity VA | 3000VA |
| Capacity Watts | 2700W |
| External Battery Option | Y |
| Input Plug | L5-30P |
| Nominal Input Voltage | 120V |
| Output Receptacles | (6) 5-20R + (1)L5-30R |
| Runtime at 100 Percent Load | 4 minutes |
| Runtime at 50 Percent Load | 12 minutes |
| Part No. | VL3000A-1 |
120V Lead Acid Line–Interactive UPS VL3000A-1
Description:
Reliable and economical backup power protection for servers and network applications.
• Pure Sine Wave Line-Interactive Conversion— Provides robust power protection against blackouts, brownouts and voltage surges
• 99% efficient operation—high efficiency ECO mode lowers energy consumption
• Auto restart—Automatically restarts when utility power returns after full battery discharge
• Smart LCD display—vital monitoring and precise information from the front panel

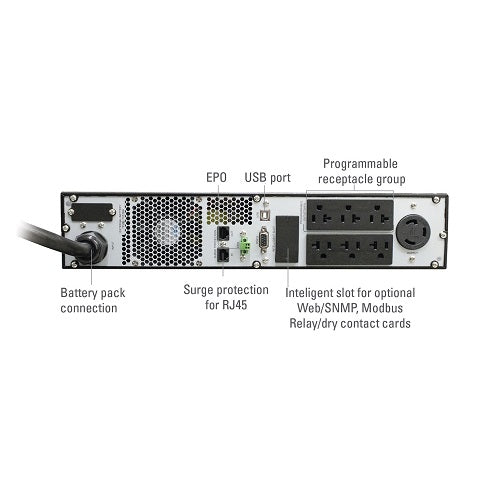

• Programmable receptacle group—maximize uptime for critical loads and equipment by shedding less critical loads
• Temperature compensation—temperature compensated charging to prolong battery life and help reduce replacement costs
• Hot swappable battery—easy to replace without interrupting the load
• Maintenance bypass—an optional maintenance bypass distribution module enables the UPS to be replaced or serviced without interruption of power to critical loads
• Extended battery runtimes—optional matching battery modules available for extended runtimes
Features:
• Available models: 800VA, 1100VA, 1500VA, 2000VA, 2200VA, 3000VA, 5000VA
• Tower, two-post, and four-post rack mounting configurations
• UL, cUL, CE, RoH, TAA Compliant
