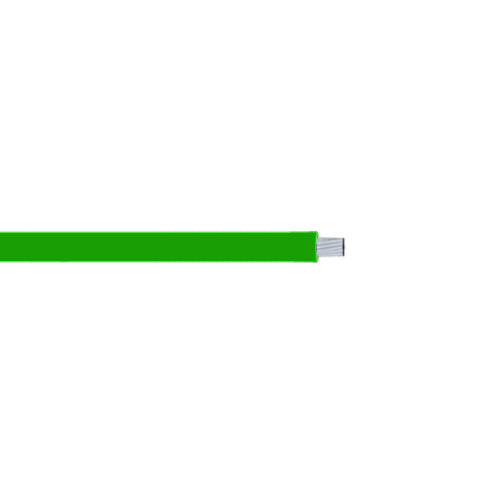

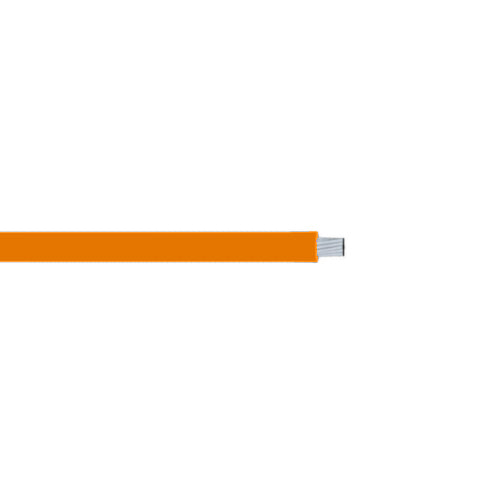

14 AWG 1C 19 Strand Nickel Plated Copper Unshielded UL 1659 PTFE 250C 600V Hook-Up Lead Wire
14 AWG 1C 19 Strand Nickel Plated Copper Unshielded UL 1659 PTFE 250C 600V Hook-Up Lead Wire
Allowable Ampacity for 14 AWG 1C 19 Strand Nickel Plated Copper Unshielded UL 1659 PTFE 250C 600V Hook-Up Lead Wire: 100 Amps
Also Known as:
High Temperature Cable, High Voltage Cable, UL 1659 Cable, Hook-up Cable, Lead Cable
Description:
UL 1659 PTFE or TFE insulated hook-up wire is used for internal wiring. Rated for 250C and 600VAC.
Specifications:
Gauge Size: 14
Stranding: 19
No. of Conductors: 1
Armor Type: None
Conductor Metal: Nickel Plated Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PTFE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1659
Temperature: 250C
Voltage: 600V
IEWC Part: 1659/14N19-2_UC
Manufacturer: Super-Temp
Manufacturer Part: ST0437-5
