16/2 Solid Fire Alarm Cable Unshielded 1000ft Spool
[pdf] [/pdf]

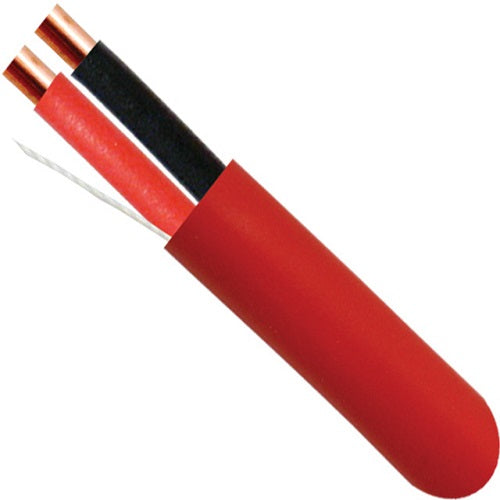

16/2 Solid Fire Alarm Cable Unshielded 1000ft Spool
DESCRIPTION :
Fire Alarm Cable, 16/2, Solid, Unshielded, FPLR (Riser), 1000ft Spool
FEATURES :
⦿ Fire Alarm Cable
⦿ FPLR (Power-Limited Fire Alarm Riser Cable)
⦿ Fire protective signal circuit
⦿ Applications: Smoke alarms and detectors, pull boxes, burglar alarms, addressable fire alarm systems
⦿ 16AWG 2 Conductor
⦿ 100% Solid Bare Copper Conductor
⦿ Unshielded
⦿ MADE IN USA
⦿ ETL Listed, RoHS Compliant
⦿ Spool Dimensions: 12’H x 12’D
⦿ 1000ft Spool
Conductor
⦿ Material 16AWG Solid Bare Copper
⦿ Conductors 2 Conductor
Insulation PVC
⦿ Thickness (mm) 0.229
⦿ Colors Red, Black
Rip Cord Polyester Rip Cord
⦿ Shield None
⦿ Drain None
Jacket Polyvinyl Chloride (PVC)
⦿ Thickness (mm) 0.381
⦿ Overall Diameter (mm) 3.94
⦿ Color Red
Electrical & Physical Properties
⦿ Operating Temperature Rating (°C) -20 – 60
⦿ Operating Voltage Rating (V RMS) 300
⦿ Resistance @20°C (Ω/1000ft) 4.1
⦿ Weight (lb/1000ft) 23
Ratings/Approvals
⦿ NEC Article 760, NFPA 262 Steiner Tunnel Smoke and Flame Test, UL 1424,
⦿ ETL Listed, RoHS Compliant
⦿ Does not comply with NYC LL5 (Local Law 5)
Jacket Print
⦿ 16 AWG 2C RISER FIRE ALARM CABLE (ETL) US TYPE FPLR FILE
NUMBER MADE IN USA
Colors Available

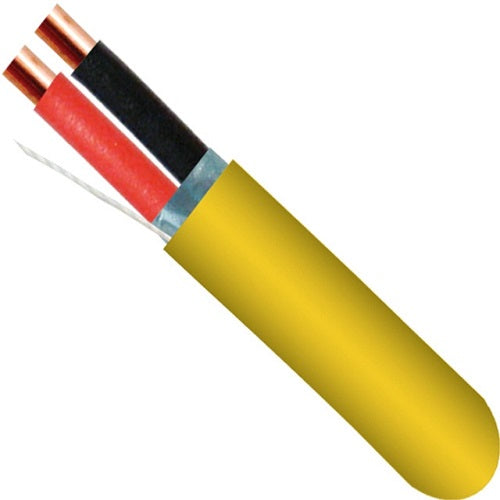

⦿ Red, Blue, Yellow
