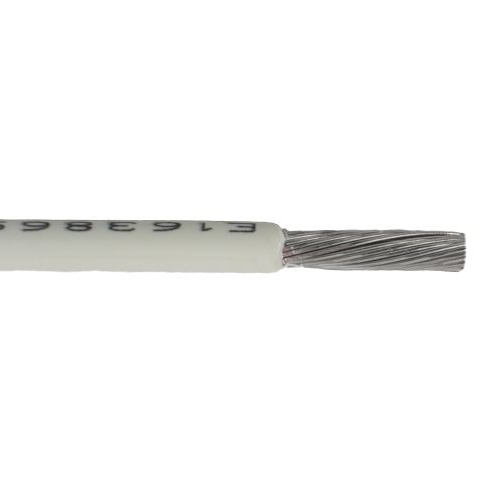

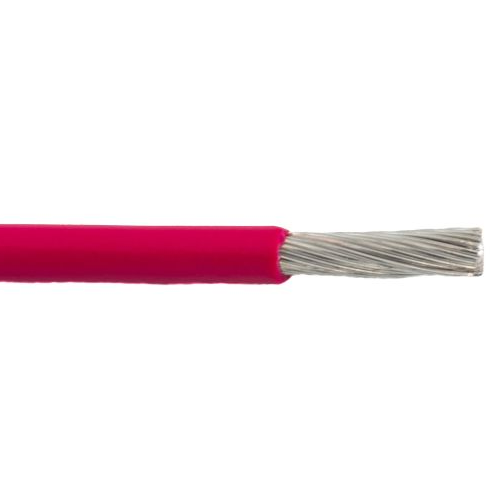

16 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire
16 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire
Allowable Ampacity for 16 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire: 100 Amps
Also Known as:
UL & CSA Styles Cable, UL 1429 Cable, Hook-up Cable, Lead Cable, UL & CSA Styles UL 1429 Cable
Description:
UL 1429 XLPVC insulated hook-up wire is used for the internal wiring of electronic equipment or appliances. Rated for 80C and 150VAC.
Specifications:
Gauge Size: 16
No. of Conductors: 1
Stranding: 19
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: XLPVC
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1429
Temperature: 80C
Voltage: 150V
IEWC Part: 1429/16T19-0
Manufacturer: Flex Wires
Vendor: Judd Wire
Part Number: H01020050002
Services:
• Striping
• Print – Ink Jet
