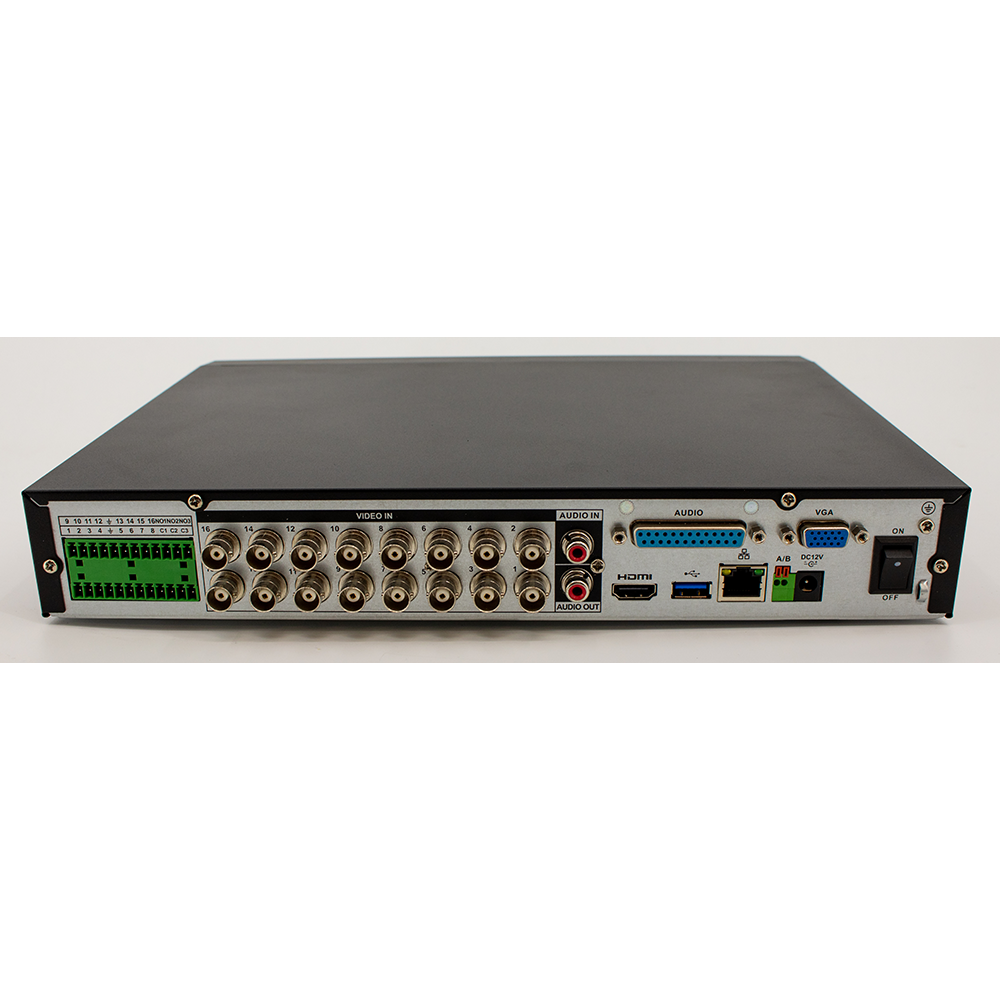

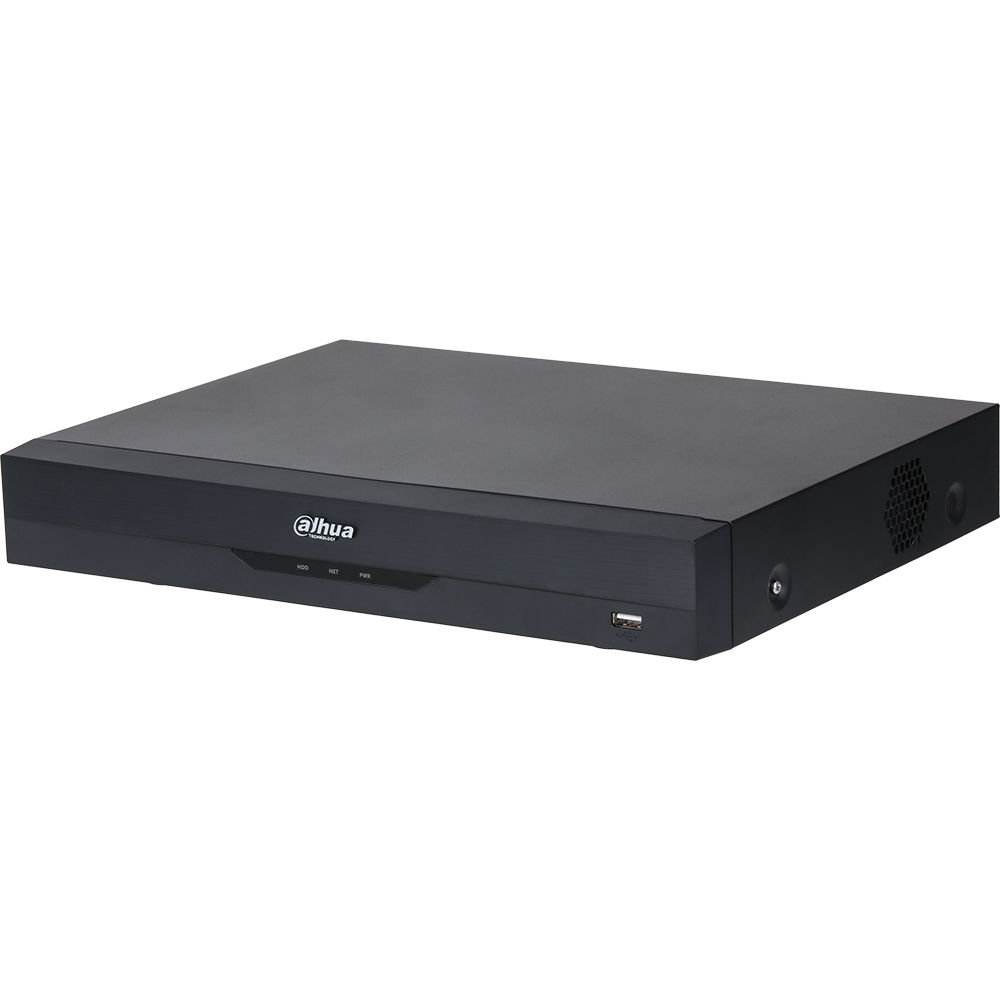

16CH 1080P Penta-brid HDCVI DVR 8TB X51C3E8
[pdf] [/pdf]
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) analog channels • 10 Tripwire/Intrusion rules per channel |
| Live View | • Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event |
| Interface | One (1) RJ-45 (100 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Internal HDD | One (1) SATA Port, up to 10 TB capacity |
16CH 1080P Penta-brid HDCVI DVR 8TB X51C3E8
DESCRIPTION :
The X51C Series HDCVI DVR offers 5M-N/1080p recording on each HDCVI channel and a host of advanced features and functions. The DVR takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. This recorder is the ideal solution for actively monitoring public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
FEATURES :
⦿ 1080p at 30 fps Recording Resolution on All HDCVI Channels
⦿ Available with a 4 TB, 6 TB, 8 TB, or 10 TB Pre-installed Hard Drive
⦿ Dual-stream Video Recording
⦿ AI Coding Technology for High-quality Human/Vehicle Video
⦿ Auto-detection and Auto-configuration of Video Inputs
⦿ 16 + 8 IP Camera Channels, each channel up to 6 MP
⦿ Maximum 128 Mbps Incoming Bandwidth
⦿ Perimeter Protection and Smart Motion Detection (SMD)
⦿ Long-distance Video Transmission
