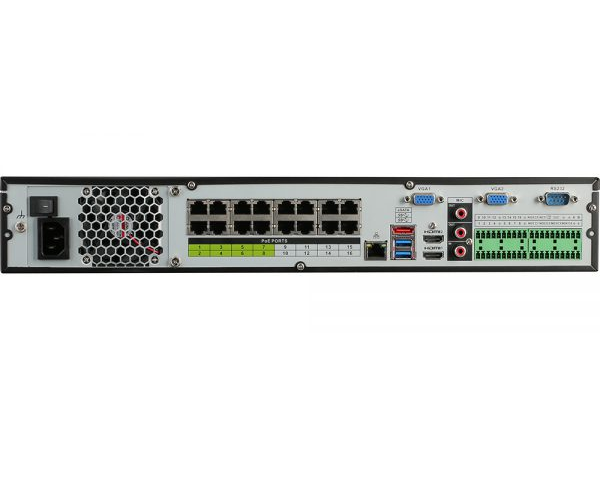

16CH 4K 1.5U EPOE NVR 4T N54B3P4
[pdf] [/pdf]
| Main Processor | Quad-core Embedded Processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 Channels |
| Audio | Input: One (1) Channel, RCA Output: Two (2) Channels, RCA |
| Interface | Two (2) HDMI Ports Two (2) VGA Ports |
| Native Output Resolution | HDMI 1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 HDMI 2: 1920 x 1080 VGA 1: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 VGA 2: 1920 × 1080 |
| Maximum Decoding | Four (4) Channels of 8 MP at 30 fps 16 Channels of 1080p at 30 fps |
| Multi-screen Display | First Screen: 1/4/8/9/16 Second Screen: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Camera Lock, Motion Detection, Recording |
| Part No | N54B3P4 |
16CH 4K 1.5U EPOE NVR 4T N54B3P4
DESCRIPTION :
Dahua’s Pro Series network video recorders offer excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, central storage, edge storage, and back up storage options. Dahua’s innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.
FEATURES :
⦿ Smart H.265+ and H.264 Dual Codecs
⦿ Maximum 320 Mbps Incoming Bandwidth
⦿ Up to 12 MP Resolution for Preview and Playback
⦿ Ports 1 to 8 Support ePoE and EoC Signal Transmission, up to 800 m (2524 ft)
⦿ HDMI and VGA Simultaneous Video Output
⦿ Intelligent Video System
⦿ Compatible with Dahua Smart Motion Detection+ Cameras
⦿ Five-year Warranty (for products sold through an authorized Dahua Dealer)
