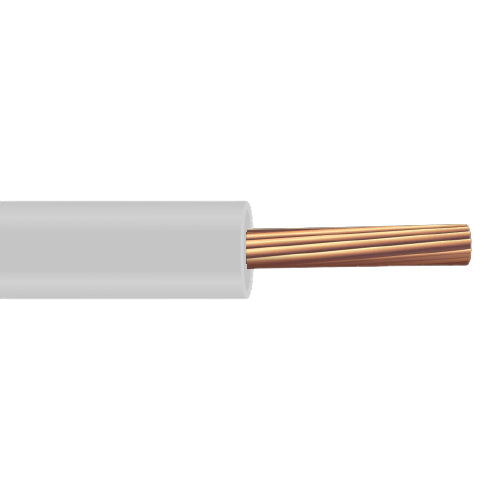

18 AWG 19 Stranded Unshielded M16878/5 Silver Plated Copper PTFE 200C 1KV Lead Wire
18 AWG 19 Stranded Unshielded M16878/5 Silver Plated Copper PTFE 200C 1KV Lead Wire
Allowable Ampacity for 18 AWG 19 Stranded Unshielded M16878/5 Silver Plated Copper PTFE 200C 1KV Lead Wire: 100 Amps
Also Known as:
M16878/5 Cable, Aerospace Cable, Defense Cable, Lead Wire, Hook up Wire, PTFE Cable, ETFE Cable, Military Cable
M16878/5 lead wire products are used in general purpose, medium and high temperature wiring applications.
Specifications :
Gauge Size: 18
No. of Conductors: 1
Stranding: 19
Armor Type: None
Conductor Metal: Silver Plated Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PTFE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): MIL M16878/5
Temperature: 200C
Voltage: 1KV
Black IEWC Part #: M16878/5-BHE-0
Gray IEWC Part #: M16878/5-BHE-8
White IEWC Part #: M16878/5-BHE-9
Green IEWC Part #: M16878/5-BHE-5
