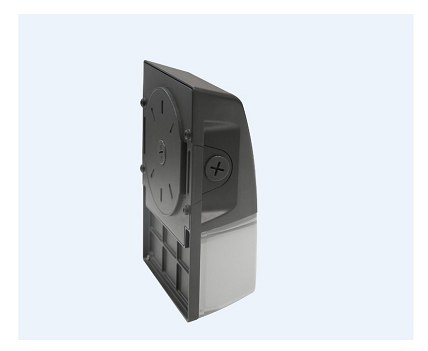

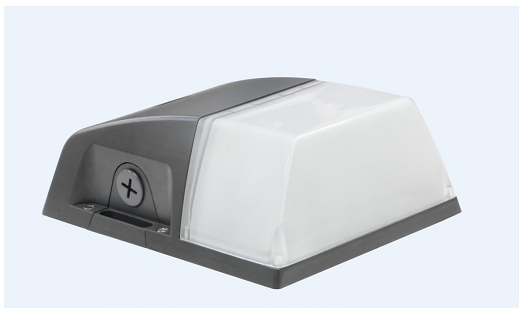

18W 100-277V 5000K CCT 0.20A LED Mini Wall Pack Light
| Power | 18W |
| CCT | 5000K |
| Rate Current | 0.20A |
| Working Temperature | -40oF~ + 113oF / -40oC~ +45oC |
| Turn-on Light Level | <30Lux |
| Turn-off Light Level | >100Lux |
| Input Volt/ Frequency | 100-277V |
| Beam Angle | 90o x 140o |
| Finish | Brown |
18W 100-277V 5000K CCT 0.20A LED Mini Wall Pack Light
Description:
It is Disassemble the fixing screws of the lamp mounting plate with a screwdriver and remove the mounting plate; .Fix the bracket with a screwdriver, and fix the fixture installation wire rope on the mounting plate, connect the cable as shown and do a good waterproof treatment.
Application:
Mounting Height: 6’ to 12’ security, pathway and perimeter lighting, building entryways, walkways and much more.
Features:
• Extremely easy for installation. With surface mounted kit, free disassembly,
simple and fast installation, save much time.
• Delicate appearance and structure which can save lots of shipping and
storage cost.
• Die-cast aluminum cooling design with better heat dissipation, LED
Tj<185oF.
• Excellent optics design greatly improve the light utilization and uniformity.
• Pre-installed internal photocell which can automatically turn on at dusk
and turn off at dawn, the energy is saved..
