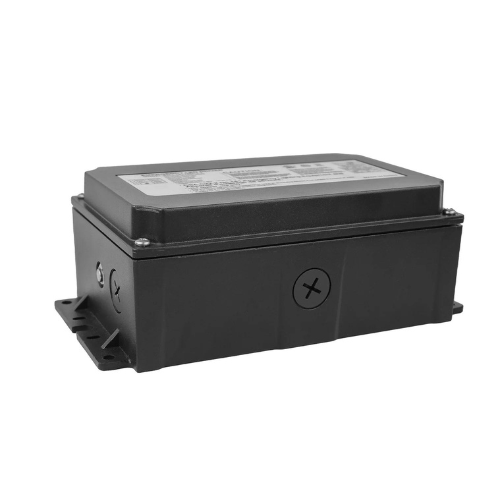

18W 120-347V/AC Waterproof Junction Box Emergency Driver
[pdf] [/pdf]
LED Driver
|
UL listed WELEDPOWER Brand 0-10V dimmable
|
Input Voltage
|
120-347V/AC
|
Input Current
|
200mA max
|
Input
Power Rating
|
12W max
|
Time
Recharge
|
24H
|
Output
Voltage
|
170Vdc
|
Emergency Power
|
18W
|
Discharge
Time
|
1.5H
|
Vaux
|
12V/DC 0.17A
|
Ambient Temp
|
0~50°C
|
18W 120-347V/AC Waterproof Junction Box Emergency Driver
Features:
• J BOX outdoor design, work for canopy or wall pack and other exterior lights
• UL Listed for us and CANADA
• Listed to UL924 and tested to CSA C22.2NO.141 Field or factory installation
• Low energy consumption CECTitle20 compliance
• Constant output power
• self-testing
• Battery: over temperature protection

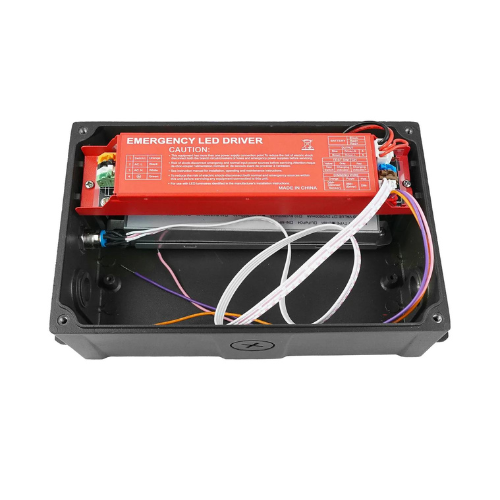

• Built-in Integrated junction box
• For wiring to the led driver’s input
