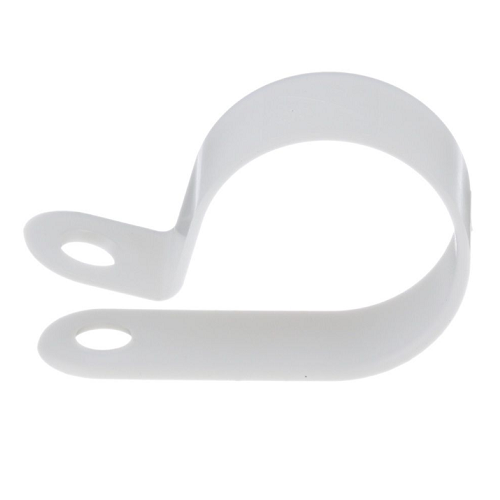

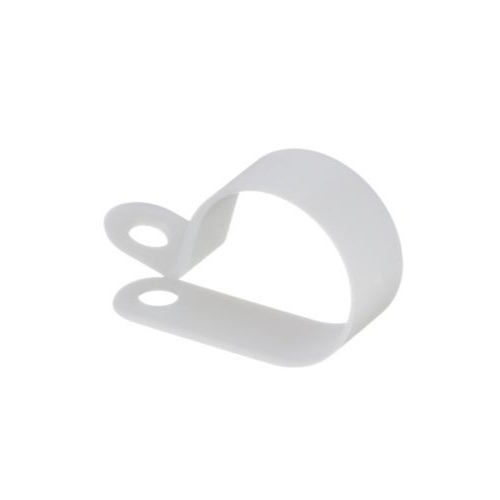

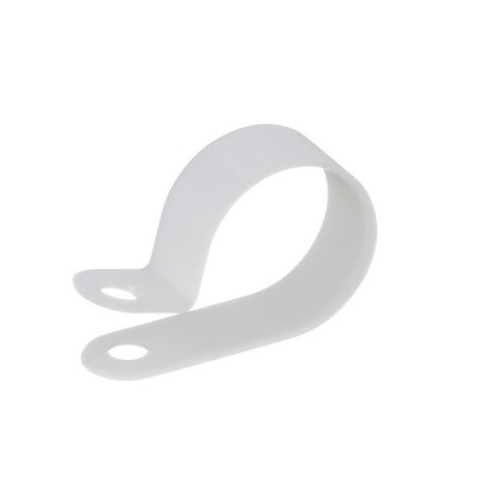

19.1mm Cable Clamp Durable Nylon 6.6 #10 (M5) Screw CCH75-S10-C (Pack of 100)
[pdf] [/pdf]
Specification :
| Application | For securing wires and cables via fixed diameter clamping |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Color | White |
| Environment | Indoor |
| Finish/Coating | None |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | #10 (M5) Screw |
| Mounting Hole Diameter (In.) | 0.203 |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Height (In.) | 0.85 |
| Overall Height (mm) | 21.7 |
| Overall Length (In.) | 1.205 |
| Overall Length (mm) | 30.65 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | 0.05 |
| Maximum Flange Thickness (mm) | 1.3 |
| Part No: | CCH75-S10-C |
Fixed Diameter Cable Clamps
• Durable Nylon 6.6 cable clamps
