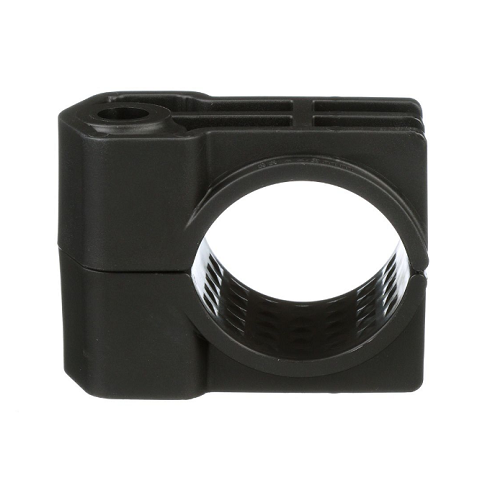

19-23mm Polymer Cable Cleat M10 Mounting 1Hole Clamp Nylon CCPL1H1923-X
[pdf] [/pdf]
Specification :
| Application: | Short-Circuit Protection |
| Product Type: | Polymer Cable Cleat |
| Color: | Black |
| Environment: | Indoor/Outdoor |
| For Use With: | Single Cables w/a Cable Diameter 19-23mm |
| Material: | Nylon |
| Maximum Installation Temperature (°C): | 60 |
| Maximum Installation Temperature (°F): | 140 |
| Minimum Installation Temperature (°C): | -40 |
| Minimum Installation Temperature (°F): | -40 |
| Maximum Operating Temperature (°C): | 60 |
| Maximum Operating Temperature (°F): | 140 |
| Minimum Operating Temperature (°C): | -40 |
| Minimum Operating Temperature (°F): | -40 |
| Resistance Properties: | Flame-Resistant |
| Standards Met: | IEC 61914:2015 |
| Part No: | CCPL1H1923-X |
Part Features:
Cleats comply with IEC 61914:2015 standard. Tested at third party laboratory. Nylon material. Operating temperature -40°C to +60°C (-40°F to +140°F). 10 – 57 mm cable diameter range-taking via 10 parts. Additional sizes and custom cleats available upon request. Single bolt fixing (M10). Rounded edges for cable insulation protection. Ridges help hold cable in place. Interlock feature prevents rotation between top and bottom pieces of cleat.
Description:
• The Polymer One-Hole Cleat is ideal for lower to medium short circuit faults in less harsh environments. It is available in multiple sizes with cable range-taking capability and is suitable for single conductor cable arrangements.

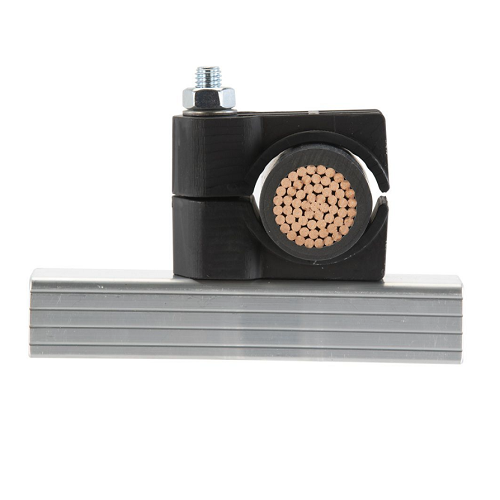

• The cleat is installed after running cable by installing direct to the cable tray rung via a fixing hole and M10 bolt.
