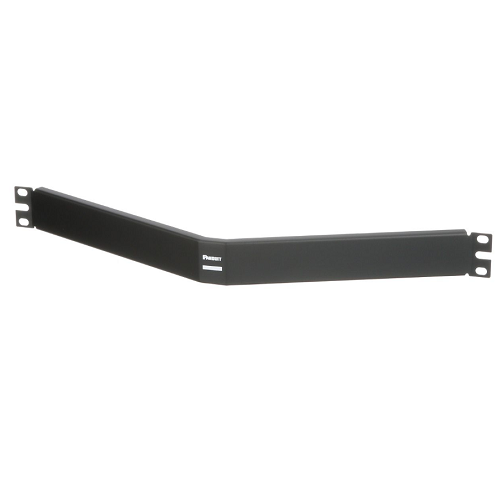

19×4.16 Blank Angled Cover Filler Panel Stamping 1RU Rack CRS CPAF1BLY
[pdf] [/pdf]
About:
This appears to be a specialized rack or panel, likely used in server racks or similar settings, made from cold-rolled steel (CRS). The dimensions are 19×4.16 inches and it fits into a 1RU (Rack Unit) space. The “CPAF1BLY” could be the model or part number.
Also Known As:
This product might not have a common alias, but it could be described by its function and features, such as “CRS Angled Filler Panel” or “1RU Angled Blank Panel”.
Common Applications:
Given the size and rack unit specification, this panel is likely used in:
• Data Centers: To fill the gaps between active equipment, aiding in airflow management and dust prevention.
• Server Rooms: Used for similar purposes as in data centers, helping in maintaining the environment.
• Telecommunication Racks: Filling spaces between equipment, providing a clean and organized appearance while assisting in airflow management.
Standards Met:
This would be subject to the specific manufacturing and safety standards adhered to by the manufacturer. Possible standards might include:
• ISO Standards: If it’s a globally traded item, it may meet certain International Organization for Standardization requirements.
• ANSI/EIA Standards: Given that it’s a rack unit, it might comply with the standards set by the American National Standards Institute and Electronic Industries Alliance for racks.
Construction:
• Material: Made of cold-rolled steel for durability and strength.
• Design: Angled and blank for effective airflow management and aesthetic purposes in racks.
• Fit: Designed to fit in a 1RU rack space, making it suitable for standard server and telecom racks.
Features:
• Ease of Installation: Designed for easy installation and removal.
• Durability: Made from CRS, ensuring long-lasting performance.
• Compatibility: Fits standard 19-inch racks.
• Functionality: The angled design helps in effective airflow management, preventing overheating of equipment.
Specification:
| Product Type: | Filler Panel |
| Material: | CRS |
| Color: | Black |
| Includes: | (1) -ANGLED FILLER PANEL STAMPING, (1) – SCREW KIT (INCLUDES FOUR #12-24 SCREWS) |
| Overall Width: | 19 In. (482.6mm) |
| Overall Depth: | 3.86 In. (98mm) |
| Overall Height: | 1.72 In. (43.7mm) |
| Overall Length: | 4.16 In. (105.7mm) |
| For Use With: | Racks |
| Number of Rack Units: | 1 |
| Part No: | CPAF1BLY |
