2/0 AWG XHHW-2 Aluminum Cable 600V
[pdf] [/pdf]
2/0 AWG XHHW-2 Aluminum Cable 600V
Allowable Ampacity for 2/0 AWG XHHW-2 Aluminum Cable 600V at 75°C: 135 Amps
Allowable Ampacity for 2/0 AWG XHHW-2 Aluminum Cable 600V at 90°C: 150 Amps
Applications:
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.
Also Known As:
2/0 aluminum wire, 2 0 wire amps, 2/0 awg aluminum wire, 2/0 xhhw-2 aluminum wire, 2/0 xhhw-2 cable, 2/0 hxxw-2 cable, 2/0 rw90 cable, 2/0 rw90 wire, 2/0 type se cable style u type xhhw-2, 2/0 xhhw-2, 2/0 southwire xhhw-2, 2/0 xhhw-2 insulation.
Due to 2/0 awg amp rating, this cable is suitable for following applications:
- Substantial Ampacity Applications
- Service entrance in industrial and commercial buildings
- Feeder circuits
- Sub-Panel distribution
- Large appliances & equipment, such as large HVAC units and industrial machines
- Conduit systems
- Motors and industrial machinery
- Renewable energy installations
Standards:
- XHHW-2 meet or exceed the following standards:
- UL standard 44
- Requirements of the National Electrical Code
- ASTM standards B 800, B 801
- Federal Specification J–C-30B
- Sunlight resistant

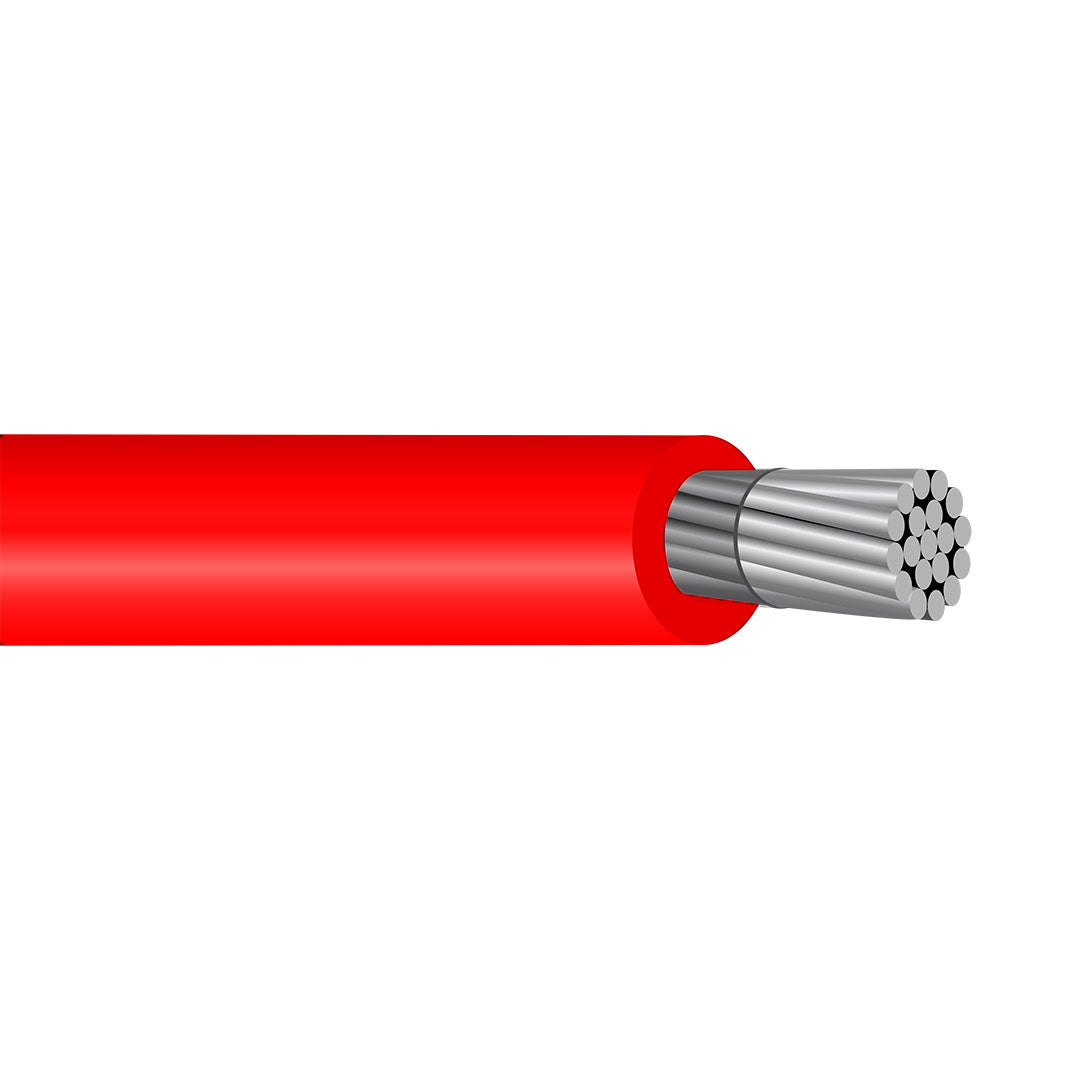

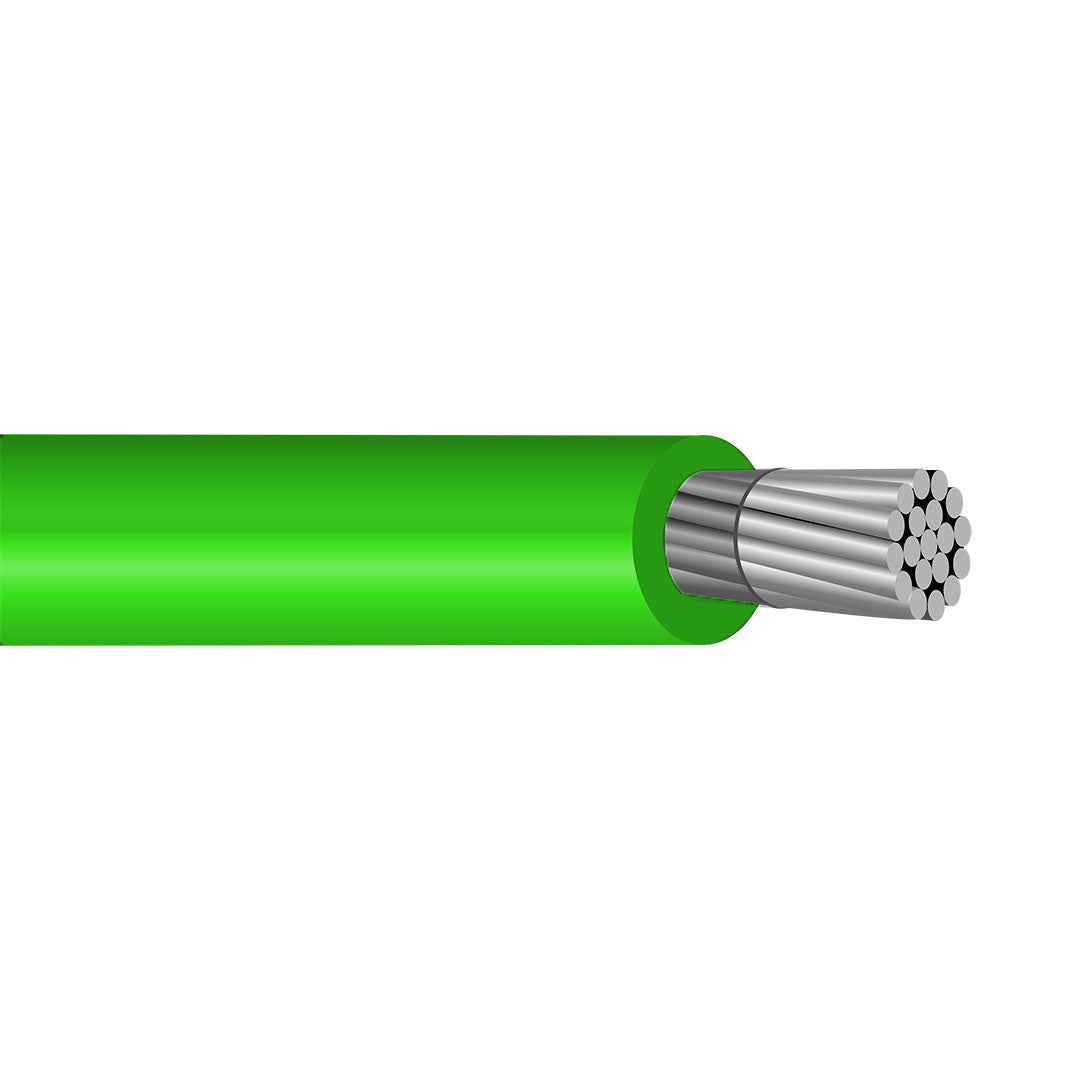

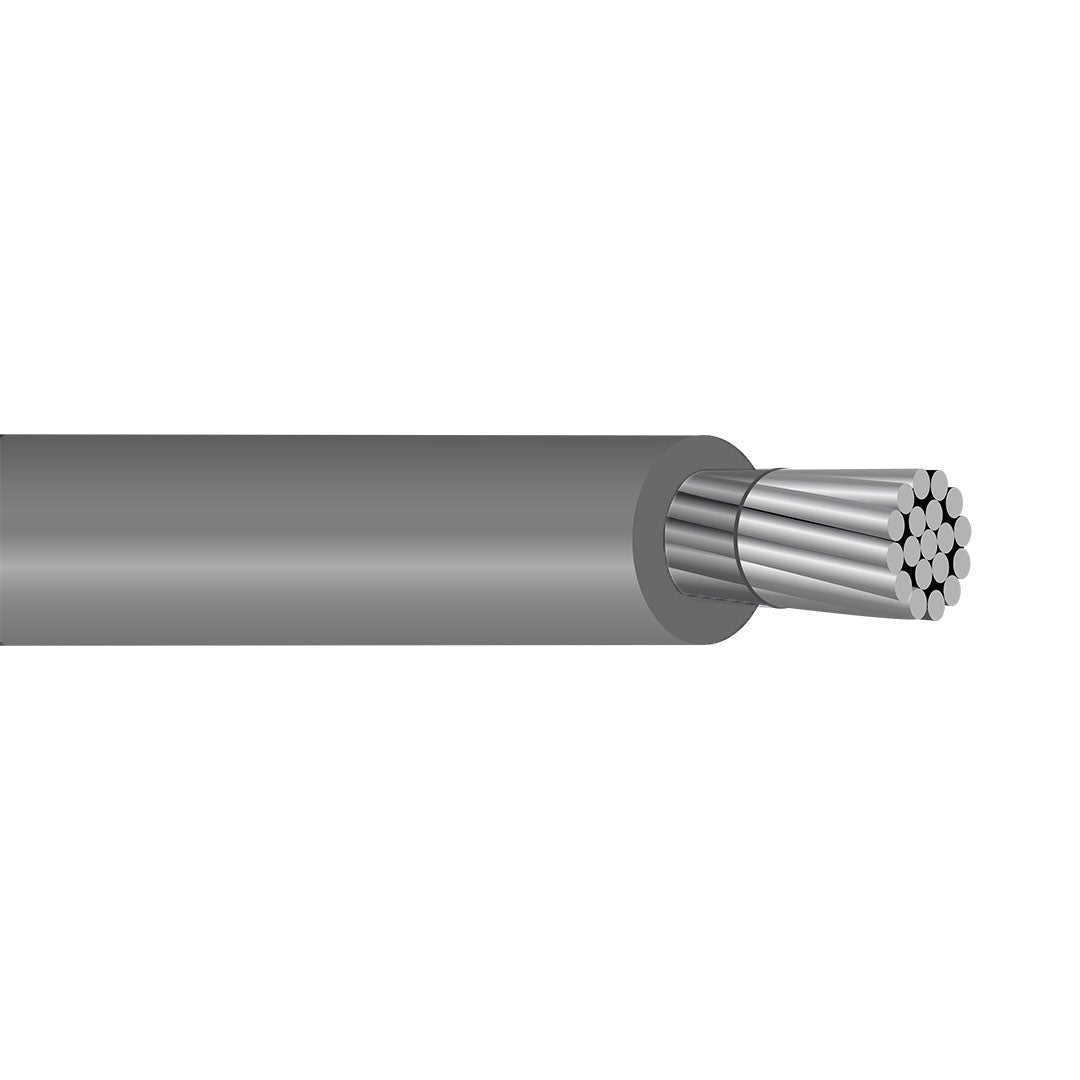

Construction
Conductors:
XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.
Insulation:
XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.
Specifications:
- Size AWG: 2/0
- Stranding: 18
- Conductor Diameter Inches: 0.376
- Insulation Thickness Inches: 0.055
- O.D. Inches: 0.486
- New Weight lb/1000FT: 158 lbs
- Ampacity at 75°C: 135 Amps
|
Compatible with Manufacturer |
|
| Houston item : |
Black : HW002A20101 Black : 2/0-01XHHWBLACKAL |
| Priority Wire & Cable : | Black : 2/0-01XHHW-2-ALUM |
| Omni Cable item : |
Black : M82/0ST-01 Blue : M82/0ST-05 Green : M82/0ST-04 Orange : M82/0ST-07 Red : M82/0ST-03 White : M82/0ST-02 Yellow : M82/0ST-08 Brown : M82/0ST-010 Gray : M82/0ST-06 |
| Southwire : |
Black : 11275501 Blue : 59128999 Green : 58529599 Orange : 58529799 Red : 59128899 White : 59129099 Yellow : 58529899 Brown : 58529699 Gray : 58530099 |
