2/0 THHN THWN-2 Stranded Copper Building Wire

[pdf] [/pdf]

2/0 AWG THHN THWN-2 Stranded Copper Building Wire

Allowable Ampacity:

• 145 Amps for General Applications (60°C)

• 175 Amps in Wet Locations (75°C)

• 195 Amps in Dry Locations (90°C) (for derating purposes only).

Description

2/0 AWG THHN/THWN-2 stranded copper wire is rated for THHN (thermoplastic high heat-resistant nylon, dry) and THWN-2 (wet) applications. The “W” indicates water resistance, making it suitable for damp or wet environments when installed in conduit. It supports up to 600 volts and operates at temperatures up to 90°C. The flame-retardant PVC jacket resists sunlight, moisture, and chemicals, ensuring durability even in harsh conditions. Commonly used for high-capacity circuits, subpanels, and industrial wiring, this wire is available in lengths of 25 ft, 50 ft, 100 ft, 250 ft, and 500 ft, as well as by the foot for custom lengths.

What are the Applications of 2/0 AWG THHN Wire?

• Serves as a service entrance wire in medium to large residential buildings, delivering up to 175 amps from the utility connection to the main panel.

• Provides power through main feeder wires to large subpanels and distribution panels.

• Powers heavy-duty machinery and equipment in industrial and commercial environments.

• Supports large commercial and industrial systems, including motors, generators, and other high-current applications.

• Suitable for underground installations when run in conduit, protecting it from moisture and external damage.

• Ensures efficient power distribution across large facilities, campuses, and industrial plants.

Also Known As

2/0 gauge copper wire, THHN #2/0 wire, 2/0 stranded copper building wire, 2/0 gauge stranded wire, 2/0 conduit wire, 2/0 nylon-insulated copper wire, 2/0 THHN wire, 2/0 THHN/THWN-2 wire, 2/0 thermoplastic high heat-resistant wire, 2/0 PVC-coated wire, 2/0 nylon-jacketed wire, 2/0 AWG THHN stranded wire by the foot, 2/0 AWG THHN stranded wire 500 ft, 2/0 annealed copper stranded wire.

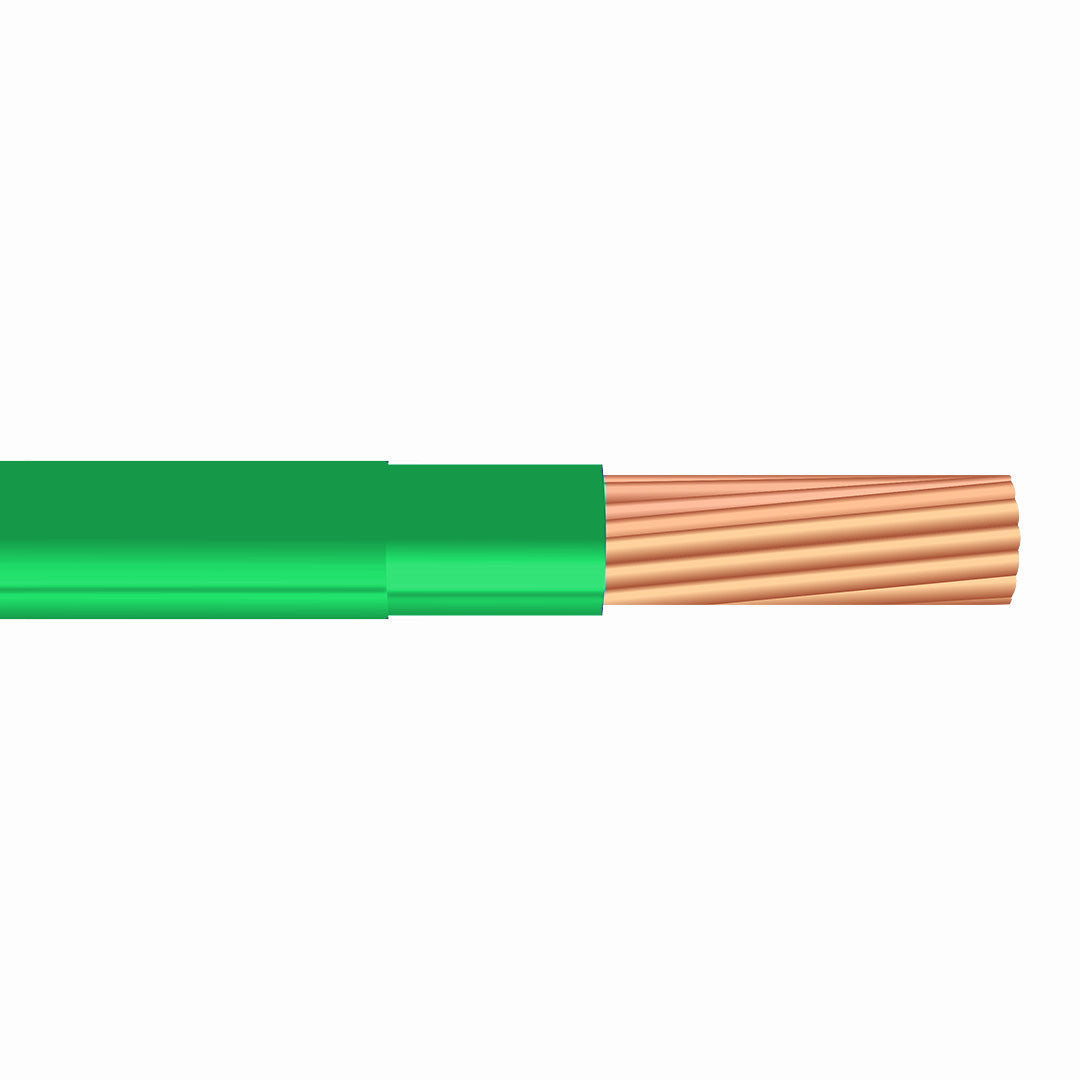

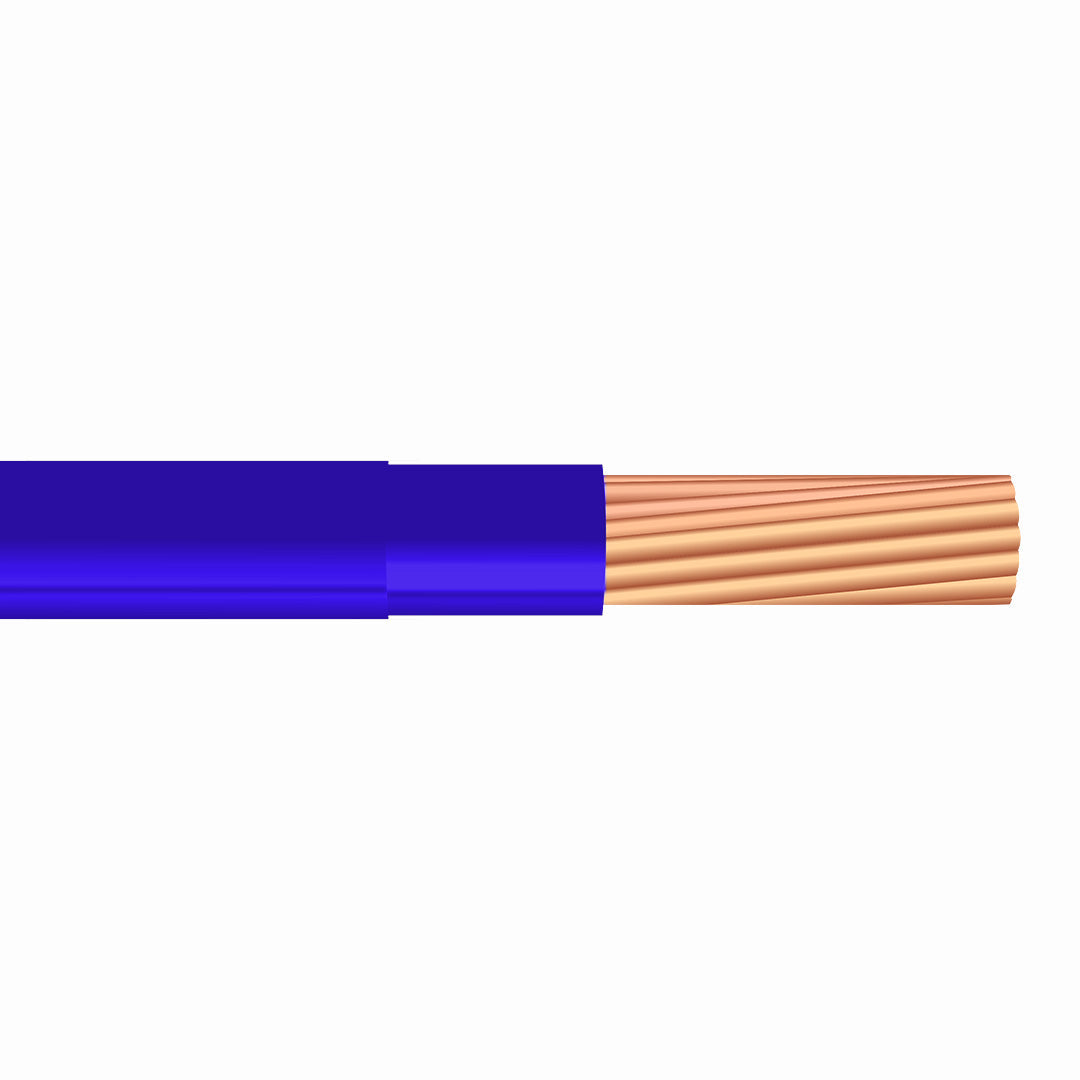

Construction of THHN 2/0 Gauge Stranded Wire

• Conductor:
  Flexible annealed copper conductor as per ASTM B3 and ASTM B8.

• Insulation:
  Durable, flame-retardant PVC jacket that resists sunlight and is lead-free.

• Outer Jacket:
  A tough, abrasion-resistant nylon jacket.

Standards for THHN/THWN-2 2/0 AWG Wire

• ICEA S-73-532

• UL 1277 (Resistant to flame, moisture, and sunlight)

• UL 1581, UL 83, UL 1063, UL 758

• ASTM B3 and B8 conductor standards

• ANSI/NFPA 70 for Safe Electrical Design and Installation

• RoHS compliant

• Approved for NEC Class I and II systems and Division 2 hazardous locations

• Allowed for Exposed Run (ER) and complies with NEC regulations

• Complies with A-A59544 specifications for durability and safety

Specifications of 2/0 AWG THHN Wire

• Size (AWG): 2/0

• Weight per 1,000 ft: 460 lbs

• Outside Diameter: 0.540 inches

• Conductors: Annealed Soft Copper per ASTM B3 and ASTM B8

• Number of Strands: 19

• Insulation: PVC

• Insulation Thickness (mils): 50

• Nylon Thickness (mils): 7

• Jacket: PVC

Compatible with Manufacturer
AWC :	White : THHN 2/0 19 9 Red : THHN 2/0 19 2 Blue : THHN 2/0 19 6 Green : THHN 2/0 19 5 Yellow : THHN 2/0 19 4 Brown : THHN 2/0 19 1 Orange : THHN 2/0 19 3 Gray : THHN 2/0 19 8
Omni Cable :	Black : M52/0ST-01 White : M52/0ST-02 Red : M52/0ST-03 Green : M52/0ST-04 Blue : M52/0ST-05 Gray : M52/0ST-06 Orange : M52/0ST-07 Yellow : M52/0ST-08 Purple : M52/0ST-09 Brown : M52/0ST-10 Pink : M52/0ST-11 Tan : M52/0ST-12
Southwire :	White: 55611102 Green : 55611501 Black : 20506201 Red : 55611304 Blue : 55611404 Gray : 55878402 Orange : 55611704 Yellow : 55611604 Purple : 55253599 Brown : 55611904 Pink : 64763799 Tan : 64763899
Houston Wire:	HW00120101

[/short]

Application:

• Type THHN or THWN-2* conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code2.
• When used as Type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
• When used as Type THWN-2*, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant.
• When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79).
• Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage for all applications is 600 volts.

Standards: THHN or THWN-2* or MTW (also AWM) meets or exceeds all applicable ASTM specifications

• UL Standard 83
• UL Standard 1063 (MTW)
• Federal Specification
• A-A-59544, and requirements of the National Electrical Code.Other part ID is HW001 20101.
