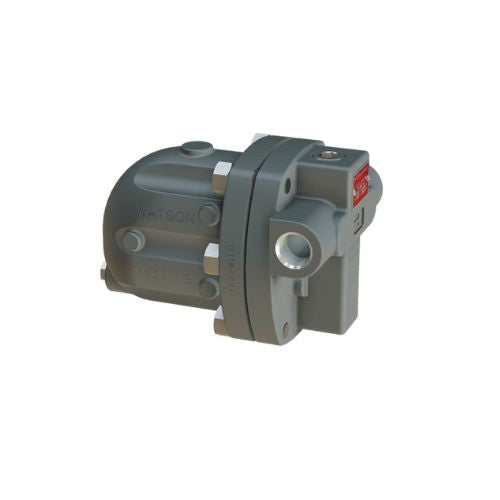

2 1/2 Inch FTES Series Float And Thermostatic Steam Trap NPT FTES-050-18-N
[pdf] [/pdf]
About:
• FTE & FTES Series are high capacity steam traps specifically designed to remove condensate and air from HVAC and industrial process applications with extremely high condensate load requirements.
• They are available witha ductile iron (FTE) or steel body (FTES) and contain a high quality welded stainless steel thermostatic air vent and stainless mechanism.
• F&T traps have excellent air-handling capability, making them a better choice than Inverted Bucket traps for most process applications.
Also Known As:
FTES Series Float And Thermostatic Steam Trap, FTES Float And Thermostatic Trap, FTES F&T Steam Trap, FTES Condensate Trap, FTES Mechanical Steam Trap.
Specification:
| Product Type | FTES Series Float And Thermostatic Steam Trap |
| Size | 2″ |
| Connection | NPT |
| Material | Cast Steel |
| Max. Operating Pressure PSIG | 50 |
| Part No | FTES-050-18-N |
Features:
• The float mechanism ensures continuous and automatic drainage of condensate, preventing waterlogging in steam systems.
• Built-in thermostatic element efficiently removes air and non-condensable gases, improving system startup and efficiency.
