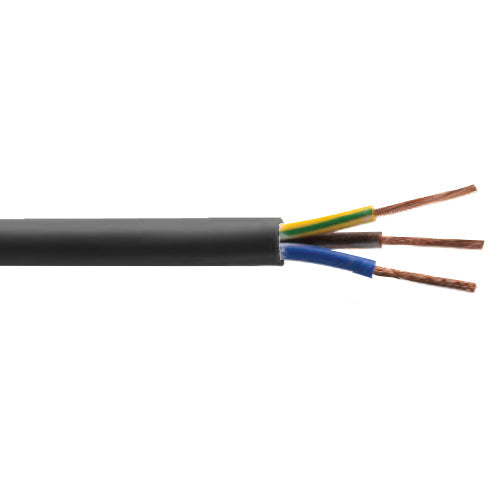

2.5mm 3 Core BC PVC Insulated H05VV-F 300/500V Sheathed Flexible Cable
[pdf] [/pdf]
Allowable Ampacity for 2.5mm 3 Core BC PVC Insulated H05VV-F 300/500V Sheathed Flexible Cable: 100 Amps
About:
This cable is a flexible, multi-core cable, insulated with Polyvinyl Chloride (PVC) and designed specifically for applications requiring a voltage rating of 300/500V. The cable’s “H05VV-F” designation points to its harmonized code which indicates the type of insulation and sheath, voltage rating, and flexibility.
Also Known As:
Depending on the region or market, this cable may also be referred to as:
• Domestic flex
• PVC multi-core flex
• Power cord
Application:
For external supply connection of portable appliances for medium duties in domestic or office environments
Construction:
• In accordance with BS EN 50525-2-11 and Cenelec code H05VV-F
• Conductors: Flexible Class 5 conductors to BS EN 60228
• Insulation: PVC insulation Type TI.2 to BS EN 50363-3
• Sheath: : PVC sheath Type TM.2 to BS EN 50363-4-1 (black or white)
• Flame retardant to BS EN 60332-1-2
• Temperature Rating: 70°C maximum conductor operating temperature
• Voltage Rating: 300/500 V
Standards:
This cable complies with (or meets) the following standards (actual standards might vary based on the manufacturer and region):
• EN 50525-2-11
• IEC 60227
Features:
• Flexibility: Suitable for applications where the cable may be bent, twisted, or moved frequently.
• Durability: The PVC insulation and sheath offer a good balance of durability and flexibility.
• Voltage Rating: Designed for installations requiring a voltage of 300/500V.
• Multi-Core Design: Allows for multiple electrical paths or signals, ideal for complex appliances or machinery.
Specifications:
• Conductor Size: 2.5mm Squared
• Conductor Count: 3 Conductor
• Conductor Material: Bare Copper
• Conductor Type: Finely Stranded
• Earth/Ground Wires: No
• Insulation Material: PVC-Polyvinyl Chloride
• Jacket Material: PVC-Polyvinyl Chloride
• Product Type: 318*Y 300/500V CABLES TO BS6500
• Screen/Shield: Unshielded
• Voltage Range: 300V OR 300/500V
• RoHS Compliant: YES
• Standards: BS6500
• Weight kg/km: 180
