2 AWG Aluminum Solar Photovoltaic 2KV PV Wire
Application:
Aluminum 2KV Photovoltaic Cable is primarily used for interconnection wiring of grounded and ungrounded photovoltaic power systems. When installed in accordance with NEC article 690.31(C)(2), PV source and PV output circuits, single-conductor cable of all sizes can be installed in outdoor cable trays. The PV cable is for applications up to 2000 volts and temperatures from -40°C to +90°C wet or dry.
Also Know As:
2 AWG Solar PV cable aluminum, 2 AWG Photovoltaic aluminum cable, 2 AWG Aluminum solar panel cable, 2 AWG PV aluminum wiring, 2 AWG Solar energy aluminum cable, 2 AWG Aluminum conductor for solar PV, 2 AWG Aluminum solar cable manufacturer, 2 AWG Solar system aluminum cabling, 2 AWG 2KV Solar PV Cable
Conductor:
• Compact stranded 8000 Series Aluminum conductor per ASTM B800, B801, B836, B901
Insulation:
• Cross-linked polyethylene (XLPE), gas/oil and sunlight resistant, direct burial rated

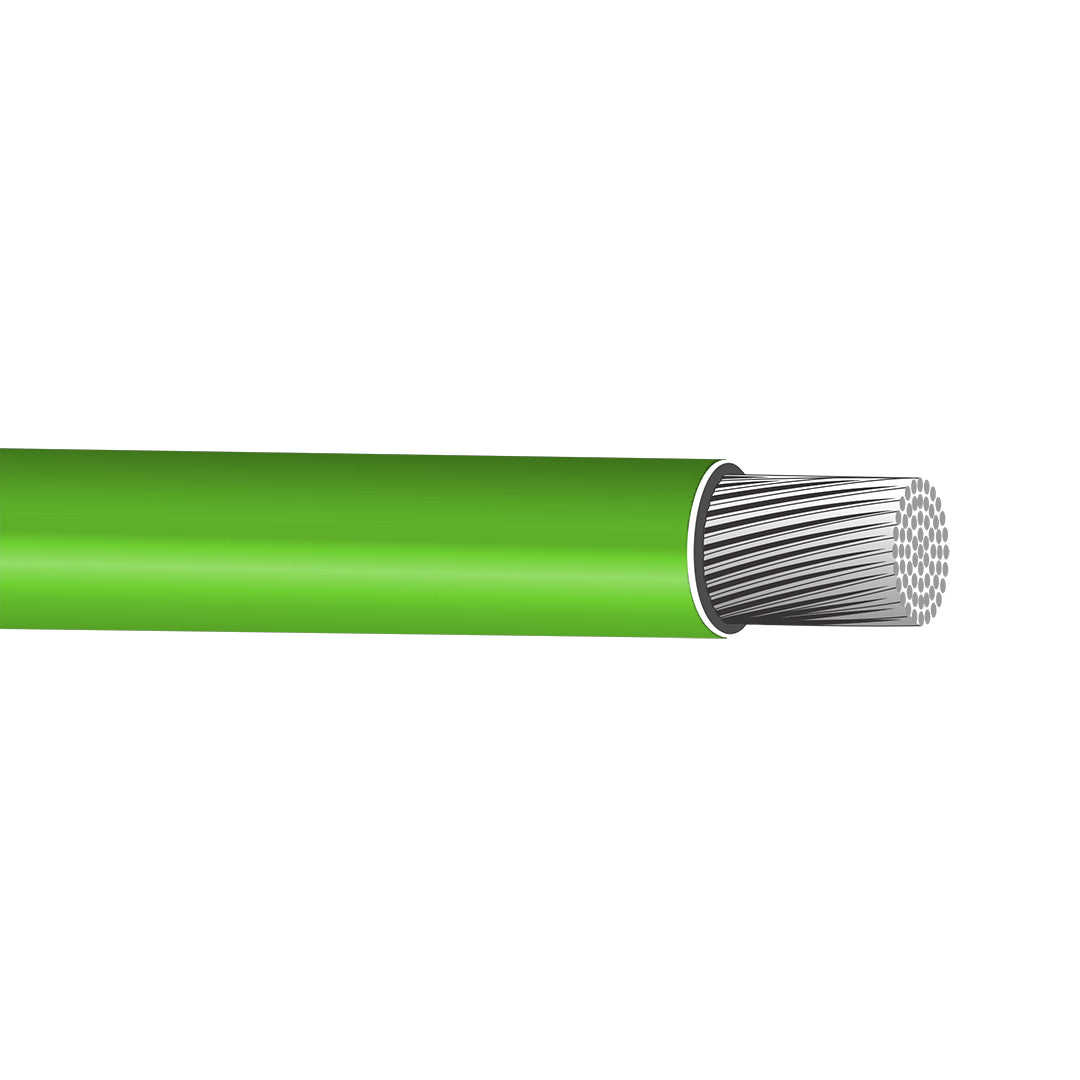

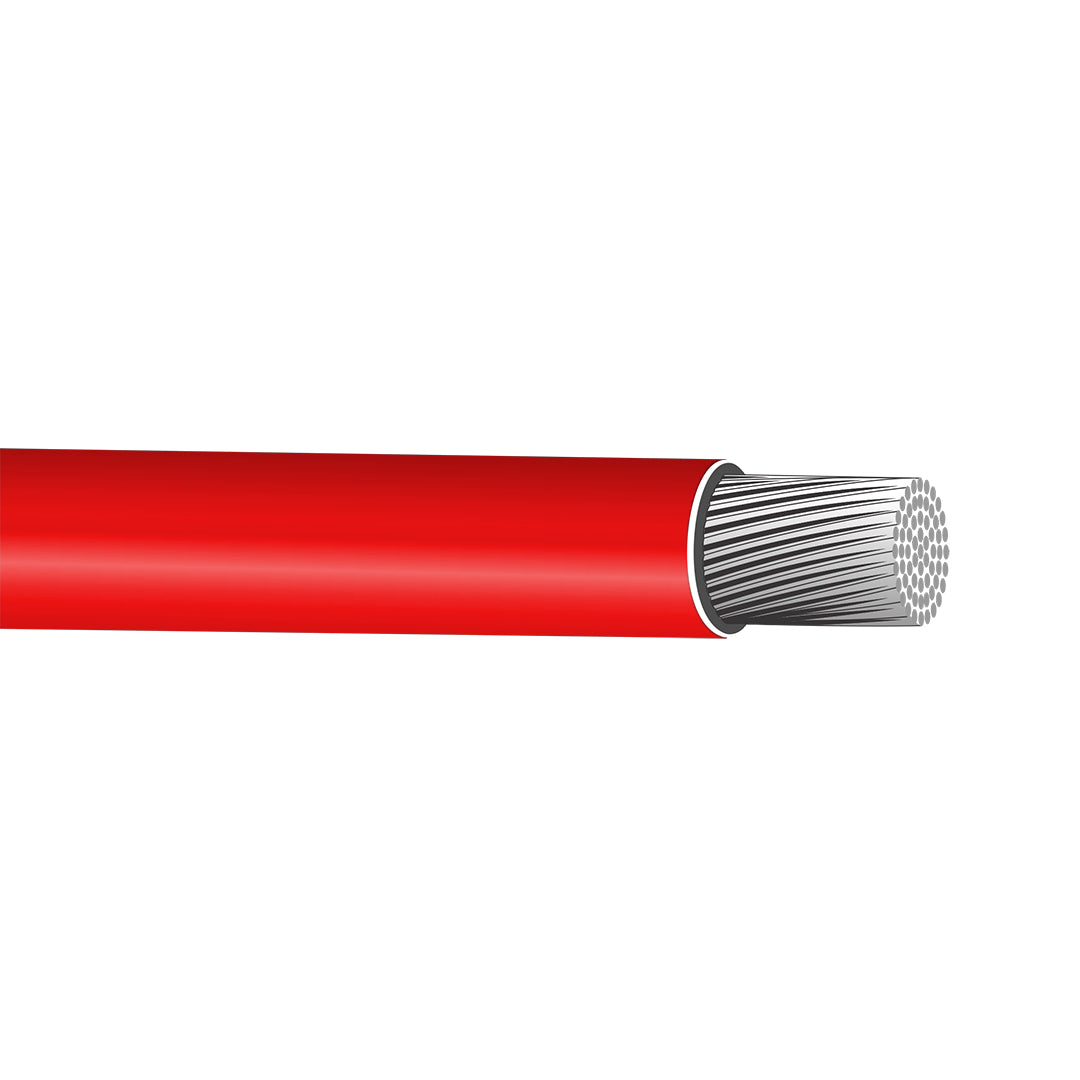

• Standard colors are black, red 8AWG-1000KCM and green in size 4AWG-1/0AWG. Other colors or stripes are available upon request
Standards:
• ASTM B800, B801, B836, B901
• UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire, UL 2556
• CSA listed RPVU90 per CSA C22.2 No. 271
• ANSI/ICEA S-95-658/NEMA WC 70
• VW-1 flame test, Sunlight Resistant, Direct Burial
Option:
• 600V UL PV Wire, CSA RPV90 available upon request
• Paralleled conductors on one reel and circuit cuts available by request
Specification:
• Part Number: 2-01ALPV-2KVXLP
• Conductor Size: 2 AWG
• No. of Strands: 7
• Insulation Thickness: 0.085 Inches
• Overall Diameter: 0.44 Inches
• Net Weight: 107/1000 lbs
• DC Resistance at 20°C: 0.2620 Ω/kft
• Ampacity* at 90°C: 100 amps
