2 AWG CD-2001 Crimp Die Tool Black Oxide Steel Brown P33 CD-2001-2-SET
[pdf] [/pdf]
Specification:
| Copper Conductor Size (AWG) | 2 |
| Metric Class 5f-6f Conductor Size (mm²) | 35 |
| Flex Conductor Size (AWG) | 2 |
| Panduit Die Index Number | P33 |
| Color Code | Brown |
| For Use With | CT-3001/ST and CT-3001/CCP Crimping Tool To Crimp #2 AWG Copper Code and Flex Conductor, 35mm° Class 5f/6f Metric Copper Conductor |
| Connection Type | Crimp |
| Application | Crimp dies for Copper Panduit Power Connectors and Splices. |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Product Type | Crimp Dies |
| Part Features | Color coded to connector,premium crimp,embosses die number |
| Part No: | CD-2001-2-SET |
Description:

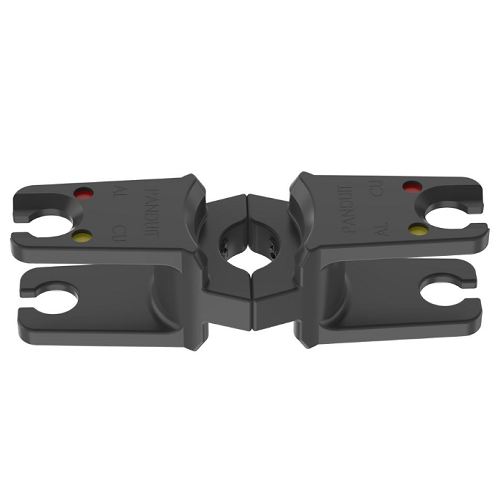

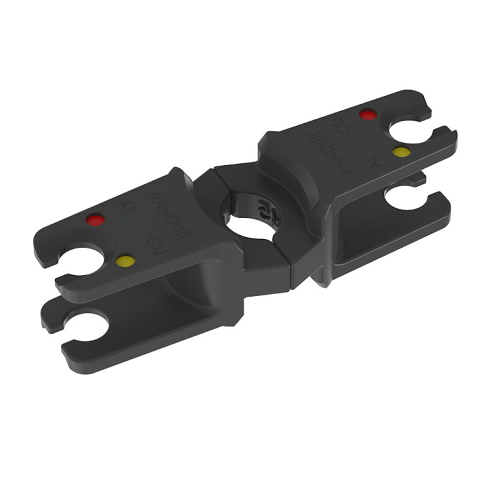

CD-2001 & KC22 Crimping Dies
• Part number permanently marked on crimping die for easy identification
• Embosses die index number on connector barrels to provide post crimp inspection
• Color-coded to provide easy matching to color-coding marked on connectors
• CD-2001 dies provide a circumferential crimp results in terminations with premium electrical and mechanical performance
• Die adapters for CD-2001 dies included with CT-3001/ST and CT-3001/CCP series tools
