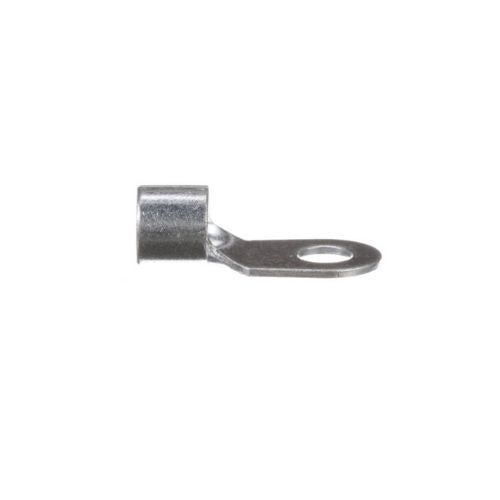

2 AWG Ring Terminal P2-56R-T (Pack Of 200)
About:
• A Ring Terminal is an electrical connector used to attach a wire to a stud or a screw, providing a secure and reliable connection.
• Measured based on the inner diameter of the ring and the wire size it accommodates.
• Provides a strong and reliable connection.
• Easy to install and remove when necessary.
Also Known As:
Ring Connectors, Lug Terminals, Ring Lugs, Cable Lugs, Wire Lugs, Crimp Ring Terminals, Ring Terminal.
Specification:
| Product Type | Ring Terminal |
| Stud Size | 5/16 |
| Maximum Copper Conductor Size (AWG) | 2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Maximum Voltage (V) | 2000 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Insulation Material | Non-Insulated |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 8 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| UPC | 074983870523 |
Features:
• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Insulation support helps to prevent wire damage in bending application
