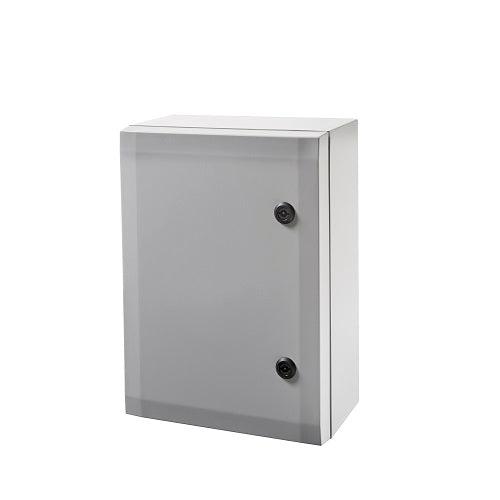

2-Point Locking 15.75 x 11.81 x 8.27 Plastic Enclosure ARCA 403021 No-MP
[pdf] [/pdf]
| Product Type | Locking |
| Dimensions | 15.75 x 11.81 x 8.27 |
| Part No | ARCA 403021 No-MP |
2-Point Locking 15.75 x 11.81 x 8.27 Plastic Enclosure ARCA 403021 No-MP
DESCRIPTION :

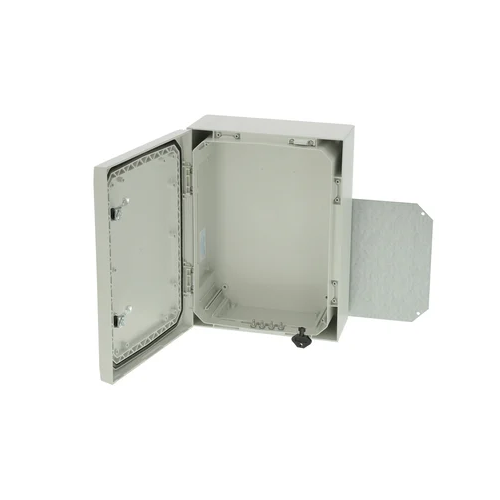

Grey cover, 2-point locking, hinges on the long side, 15.75 x 11.81 x 8.27. Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. S versions with swinghandle 2-point locking system. Door guide included.
Height (mm) : 400
Width (mm) : 300
Depth (mm) : 210
Height (inch) : 15.75
Width (inch) : 11.81
Depth (inch) : 8.27
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
