2-Port Surface Mount Box With CAT5E Jack (Pack of 50)
[pdf] [/pdf]

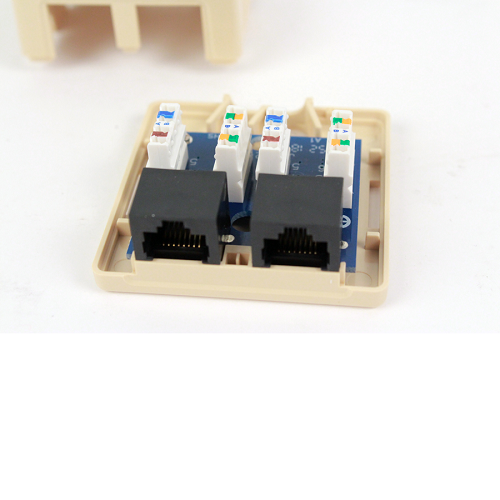

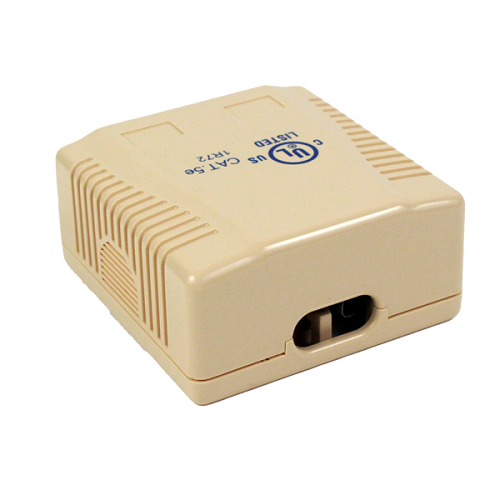

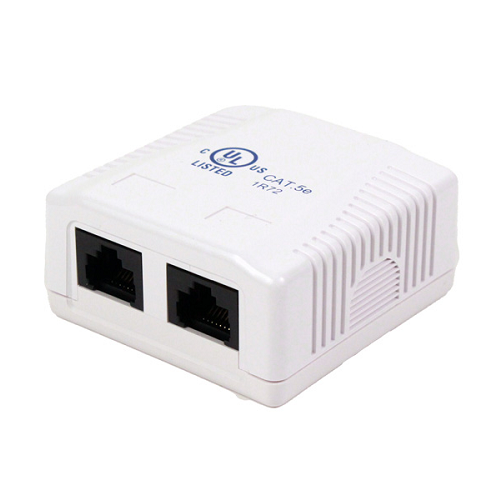

2-Port Surface Mount Box With CAT5E Jack
Description:
2-Port Surface Mount Box with CAT5E Jack, Universal, Ivory, and White.
Features:
• High-impact ABS construction
• Screws, ties, and adhesive tape included
• UL 94 V-0 Fire Retardant
• Gloss finish
• Available in 1 or 2 -Port, in Ivory or White
• Can be terminated with 110 or Krone-type tools
• UL listed
Material:
1. Case: ABS, UL 94V-10
2. RJ45 Jack Housing: PBT+Glass Fiber, UL 94V-0 (Black)
3. Contact Bracket: PBT+Glass Fiber, UL 94V-0 (Black)
4. RJ45 Jack Contact Material: Phospor Bronze with Nickel plated
Finish: 50 micro-inch Gold plated on plug contact area
5. IDC Housing: PC+Glass Fiber, UL 94V-2
IDC Terminal: Phospor Bronze with Tin plating.
6. Screw: M2.0x6.0xø3.3mm
7. PCB: FR4, UL 94V-0
8. Screw: M3.5×16.0xø6.0mm
Performance:
• T568A & T568B wiring printing on IDC.
• Insertion force: 20N max (IEC 60603-7-4)
• Retention Strenght : 7.7 kg between Jack and Plug
• Operating temperature: -10ºC to 60ºC
• (ISO/IEC 11801, ANSI/TIA/EIA 568 B.2)
