20′ 24 AWG Black Cat 5e UTP Copper Patch Cord UTPCH20BLY
20′ 24 AWG Black Cat 5e UTP Copper Patch Cord UTPCH20BLY
About:

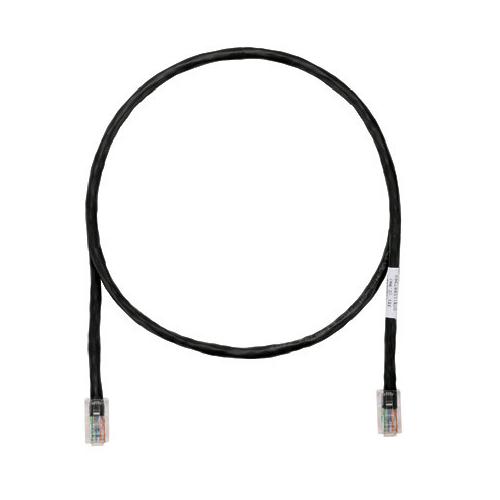

The TX5e Cat 5e UTP Patch Cord is a 20-Foot, Black cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Also Known As:
Patch Cord, Cat 5e, Pan-Net, UTP Copper, Unshielded, Black Color
Application:
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Features:
• NEXT and return loss
• Integral pair manager
• Patented tangle-free latch
• Centered de-embedded plug
• 100% performance tested for wire map
Specification:
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Plug Type | 8 Position |
| Wiring Scheme | T568A |
| Overall Length (ft.) | 20 |
| Nominal Cable Outside Diameter (In.) | 0.215 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | No Boot |
| Color | Black |
| Part No. | UTPCH20BLY |
