20′ 24 AWG Black Cat 6 UTP Copper Patch Cord UTPSP20BLY
About:

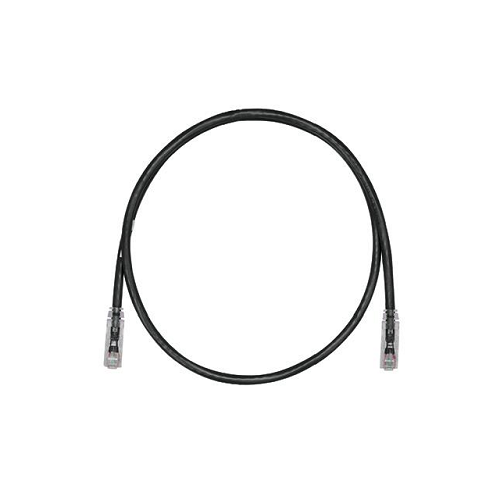

The TX6 PLUS Cat 6 UTP Patch Cord is a 20-Foot, Black cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Also Known As:
Patch Cord, Cat 6, Pan-Net, Unshielded, Black Color
Application:
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP)
Features:
• NEXT and return loss
• Integral pair manager
• Patented tangle-free latch
• Centered de-embedded plug
• 100% performance tested for wire map
Specification:
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Plug Type | 8 Position |
| Overall Length (ft.) | 20 |
| Nominal Cable Outside Diameter (In.) | 0.235 |
| Boot Color | Clear |
| Color | Black |
| Part No. | UTPSP20BLY |
