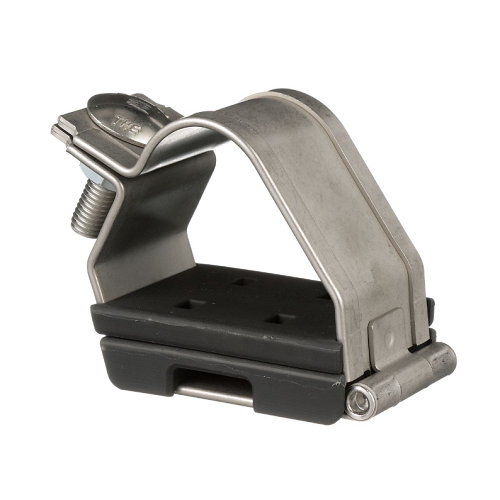

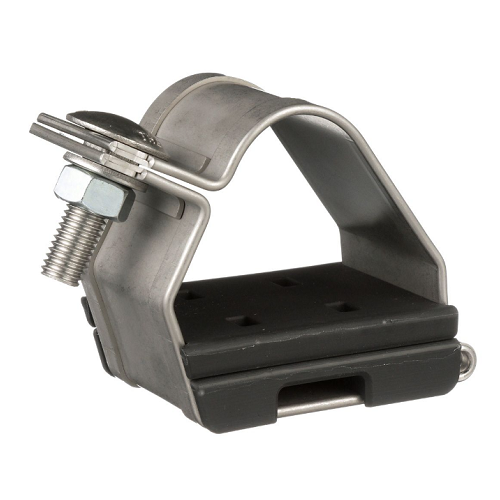

20-25mm Trefoil Cable Cleat 316L Stainless Steel TR Clamp 1Hole M8 Mount CCSSTR2025-X (Pack of 10)
[pdf] [/pdf]
| Product Type: | Stainless Steel Cable Cleat |
| Color: | Natural |
| Environment: | Indoor and Outdoor |
| For Use With: | Cables in a Trefoil Configuration w/a Cable Diameter of 20-25mm |
| Material: | 316 Stainless Steel |
| Maximum Installation Temperature (°C): | 60 |
| Maximum Installation Temperature (°F): | 140 |
| Minimum Installation Temperature (°C): | -40 |
| Minimum Installation Temperature (°F): | -40 |
| Maximum Operating Temperature (°C): | 60 |
| Maximum Operating Temperature (°F): | 140 |
| Minimum Operating Temperature (°C): | -40 |
| Minimum Operating Temperature (°F): | -40 |
| Resistance Properties: | Flame-Resistant |
| Standards Met: | IEC 61914:2015 |
| Part No: | CCSSTR2025-X |
Description:
• The Stainless Steel Trefoil Cable Cleat offers protection against extreme environments and high short circuit current faults. It is made of 316L stainless steel, available in multiple sizes with cable range taking capability, and suitable for trefoil cable arrangements.

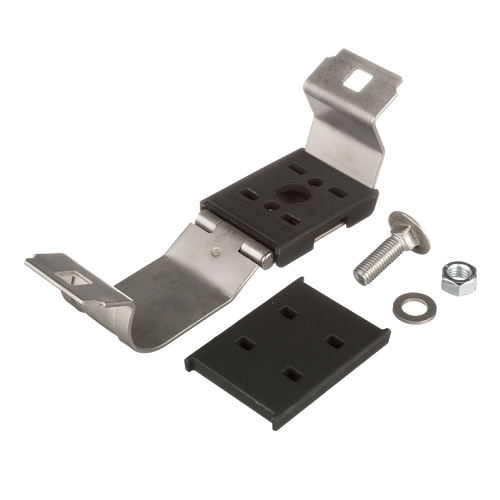

• The cleat can be installed after running cable using a Panduit mounting bracket or before running cable by installing direct to the cable tray rung through a fixing hole using an M8 bolt
