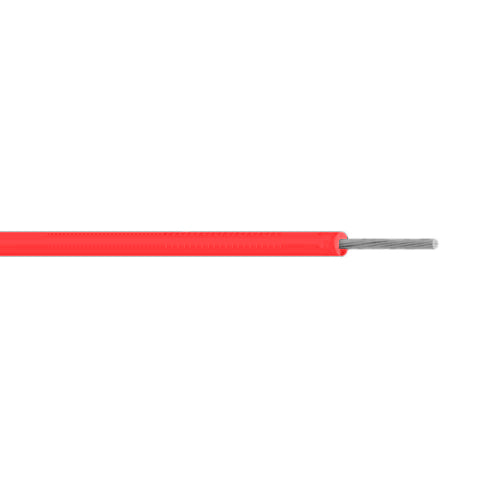

20 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire
20 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire
Allowable Ampacity for 20 AWG 19 Strand Tinned Copper Unshielded UL 1429 XLPVC 80C 150V Hook-Up Lead Wire: 100 Amps
Also Known as:
UL & CSA Styles Cable, UL 1429 Cable, Hook-up Cable, Lead Cable, UL & CSA Styles UL 1429 Cable
Description:
UL 1429 XLPVC insulated hook-up wire is used for the internal wiring of electronic equipment or appliances. Rated for 80C and 150VAC.
Specifications:
Gauge Size: 20
No. of Conductors: 1
Stranding: 19
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: XLPVC
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1429
Temperature: 80C
Voltage: 150V
IEWC Part: 1429/20T19-0, 1429/20T19-3, 1429/20T19-4, 1429/20T19-9, 1429/20T19-1
Manufacturer: Judd Wire
Manufacturer Part: H01010180002, H01010180602, H01010180402, H01010180902, H01010180202
Services:
• Striping
