20 AWG 19 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire
20 AWG 19 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire
Allowable Ampacity for 20 AWG 19 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire: 100 Amps
Also Known as:
Hook-up Cable, Lead Cable, M16878/1 Cable, Hook-up Wire, Lead Wire, Atlas Wire, Aerospace Cable, High Temperature Wire
Description:
M16878/1 lead wire products are used in general purpose, medium and high temperature wiring applications.
Specifications:
Gauge Size: 20
No of Conductors: 1
Stranding: 19
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PVC
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): MIL M16878/1
Temperature: 105C
Voltage: 600V
Brand: Atlas Wire
Black IEWC Part: M16878/1-BGB-0

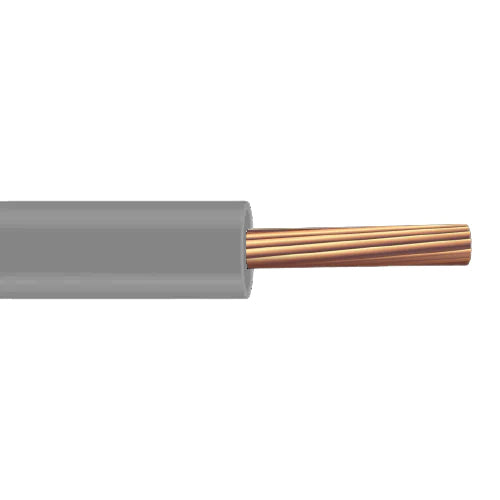

Gray IEWC Part: M16878/1-BGE-8

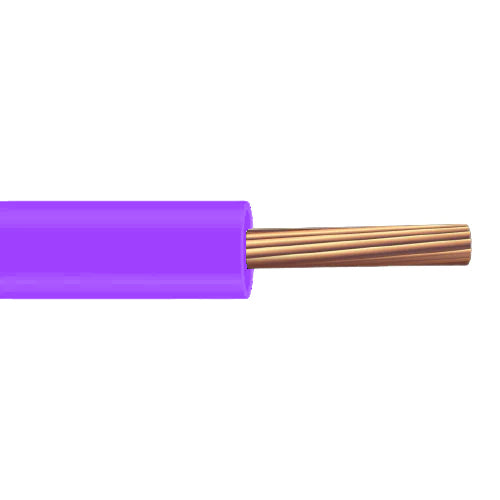

Violet IEWC Part: M16878/1-BGE-7ALB
