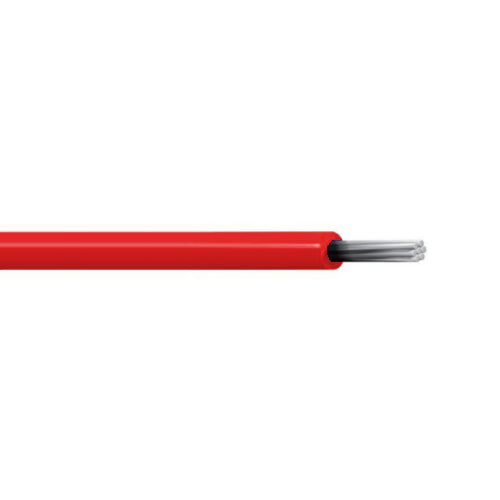

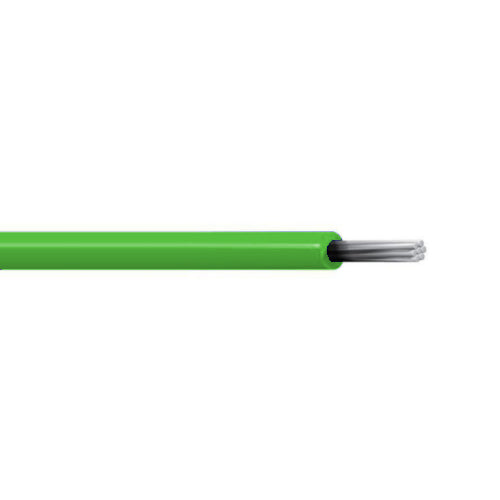

20 AWG 7 Strand Tinned Copper Unshielded UL 1430 XLPVC 105C 300V Hook-Up Lead Wire
20 AWG 7 Strand Tinned Copper Unshielded UL 1430 XLPVC 105C 300V Hook-Up Lead Wire
Allowable Ampacity for 20 AWG 7 Strand Tinned Copper Unshielded UL 1430 XLPVC 105C 300V Hook-Up Lead Wire: 100 Amps
Also Known as:
UL & CSA Styles Cable, UL 1430 Cable, Hook-up Cable, Lead Cable, UL & CSA Styles UL 1430 Cable
Description:
UL 1430 XLPVC insulated hook-up wire is used for internal wiring. Rated for 105C and 300VAC.
Specifications:
Gauge Size: 20
No. of Conductors: 1
Stranding: 7
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: XLPVC
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA REW, UL 1430
Temperature: 105C
Voltage: 300V
IEWC Part: 1430/20T07-0
Manufacturer: Judd Wire
Manufacturer Part: H01030170002
Services:
• Striping
