2 AWG Telcoflex IV KS24194 L4 Central Office Power Wire
Allowable Ampacity for 2 AWG Telcoflex IV KS24194 L4 Central Office Power Wire: 130 Amps
Applications:
Type L4 Central Office Power Cable is a rugged; RHH/RHW rated wire for 600V
applications. Central Office Power Cable is suitable for use in telecommunication applications and for power distribution of AC and DC power in conduit or cable trays. Central Office Power Cable is available in a variety of colors.
Also Known As:
2 TELCOFLEX IV Central Office Power Cable, 2 TELCOFLEX IV Telephone Central Office Power Cable, 2 TELCOFLEX IV Telecom Power Wire
Standards:
• UL listed Power Cable for Telephone Central Office Applications
• 1/0 and larger listed and marked FT4 and for CT use
• ST1 per UL1685 Vertical Tray Flame Test
• Meets UL VW-1 flame test
• Passes IEEE 1202, FT4 Vertical Tray Flame Test
• UL 44 Thermoset Insulated Wires and Cables
• Meets Telecordia specification GR-347-CORE
• CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables,
RW90

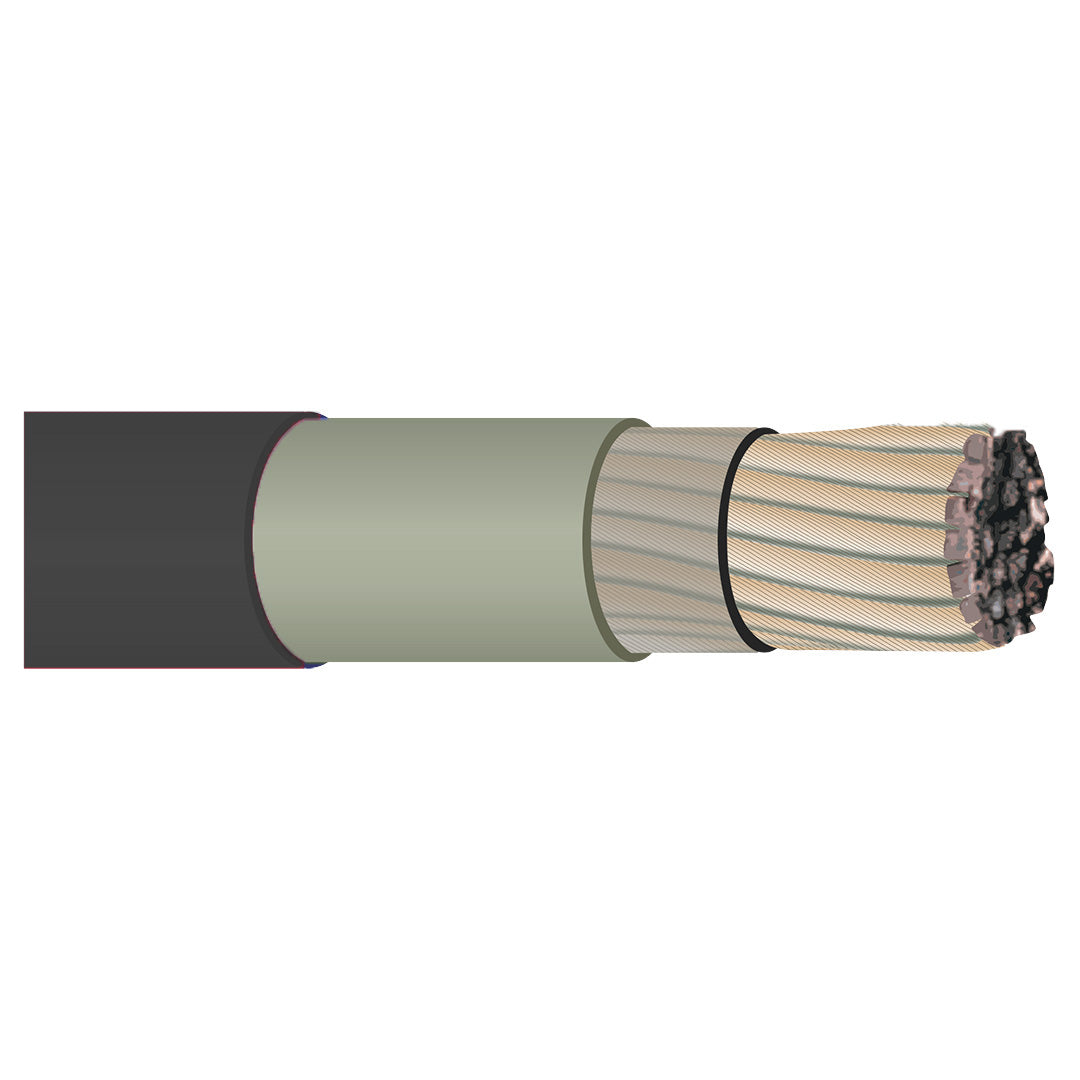

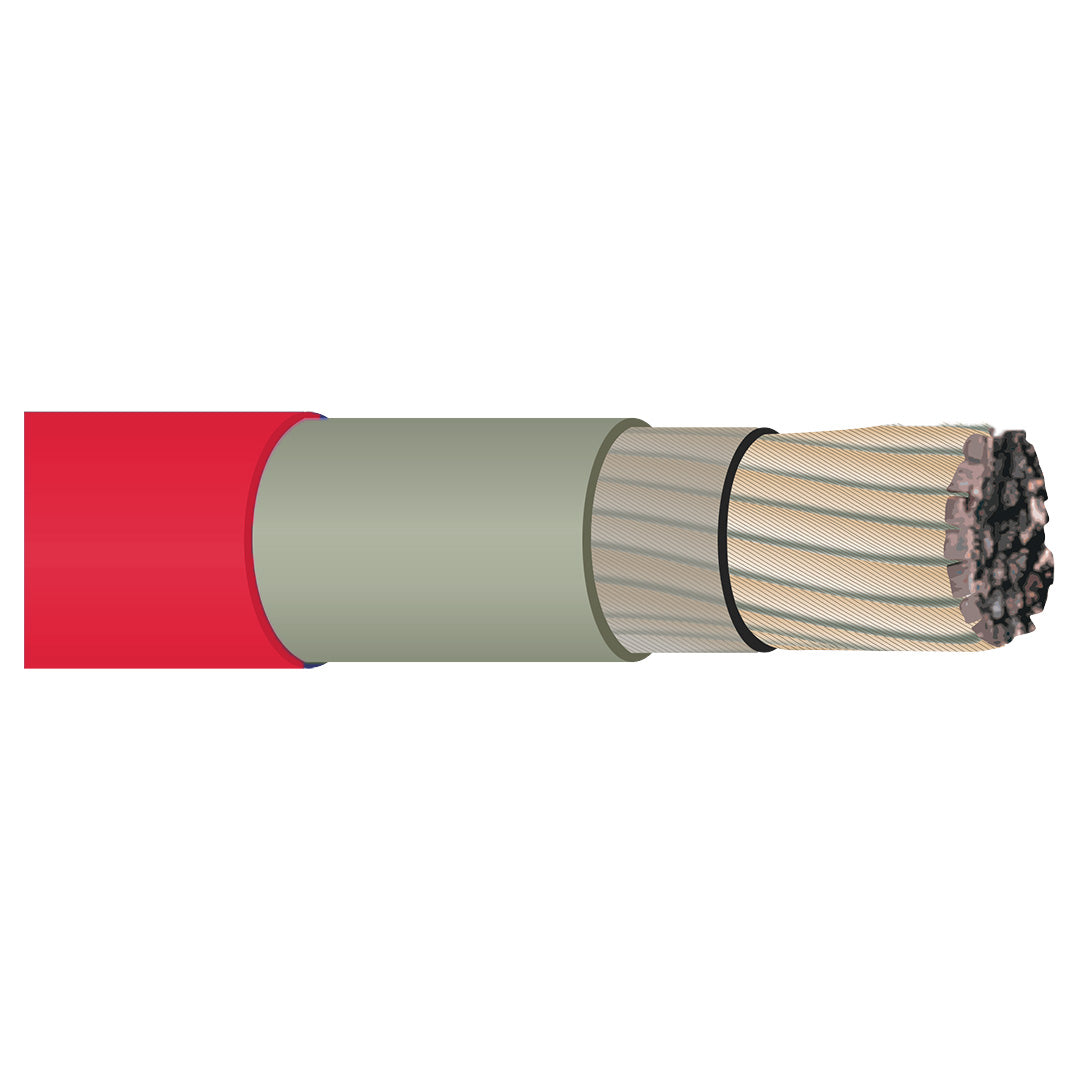

Construction:
Conductors:
• Class I stranded tinned copper conductor for increased flexibility in accordance with ASTM B-33 & B-172 and covered with a mylar tape
Insulation:
• Low Smoke Zero Halogen LSZH cross linked polyolefin XLPO insulation, which is rated 90°C. Cables 6 AWG or larger have a layer of mylar tape over the insulation
Jacket:
• Cotton braid jacket coated in gray saturant finish
• Maximum conductor operating temperature: 90°C dry, 75°C
wet or dry, maximum short circuits 250°C
• Other colors and sunlight resistance available upon request
Specifications:
- Conductor Size AWG/kcmil: 2
- No. of Strands: 168
- Conductor Diameter inches: 0.305
- Insulation Min. Avg. Thickness mils: 60
- Overall Diameter inches: 0.480
- Net Weight lbs/kft: 283
- Max DC Resistance @20C ohms/kft: 0.1720
- Current Capacity** amps: 130
|
Compatible with Manufacturer |
|
| Priority Wire & Cable : | Black : 2-01COP-124194-L4 |
| Omni Cable : | Black : TF402-01 |
| AWC : | Black : TELCO-2-L4 |
| Southwire : |
Black : 56976801 |
