2000′ 24 AWG 4 Pairs Black CAT5E CMX LSZH Jacket Outdoor Cable
DESCRIPTION :
Category-5E CMX, 8-Conductor, Outdoor Jacket (UV), AWG24 Solid-Bare Copper.
FEATURES :
⦿ High-Performance Data Cable
⦿ 350MHz Bandwidth for Data Applications
⦿ 24AWG Solid Copper Conductors
⦿ Easily Identified Color-Striped Pairs
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ Suitable for 10/100/1000Base-T
⦿ Outdoor UV Rated Jacket
⦿ ETL Listed, RoHS Compliant

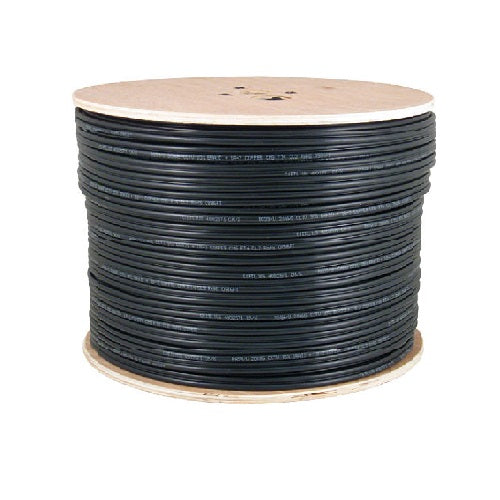

⦿ Available in 1000ft Pull Box or Wooden Spool, or 2000ft Wooden Spool
Technical Data :
⦿ Rated Temperature -40 ~ 75 ºC
⦿ Rated Voltage 60V
⦿ Product Standard Certification CMX
⦿ Reference Standard TIA/EIA 568 & ISO/IEC 11801
Conductor Solid Bare Copper :
⦿ Size 24 AWG
Insulation PE :
⦿ Average Thickness (mm) 0.205
⦿ Min. Point Thickness (mm) 0.190
⦿ Insulation Diameter (±0.005mm) 0.91
⦿ Twisted Pair Diameter (±0.01) 1.82
Assembly Diameter 3.80 :
(Jacket (Black) LLDPE (UV))
⦿ Average Thickness (mm) 0.60
⦿ Min. Point Thickness (mm) 0.54
⦿ Outer Diameter (±0.10mm) 5.10
⦿ Rip Cord Yes

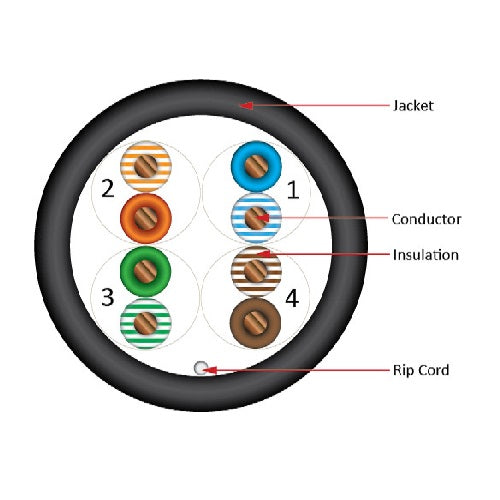

Color of Pairs :
⦿ Pair 1:Blue,White-Blue
⦿ Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green
⦿ Pair 4:Brown,White-Brown
Mechanical Characteristics :
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24AWG OUTDOOR UV
CAT5E 350MHz TIA/EIA – 568C.2 RoHS XXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
